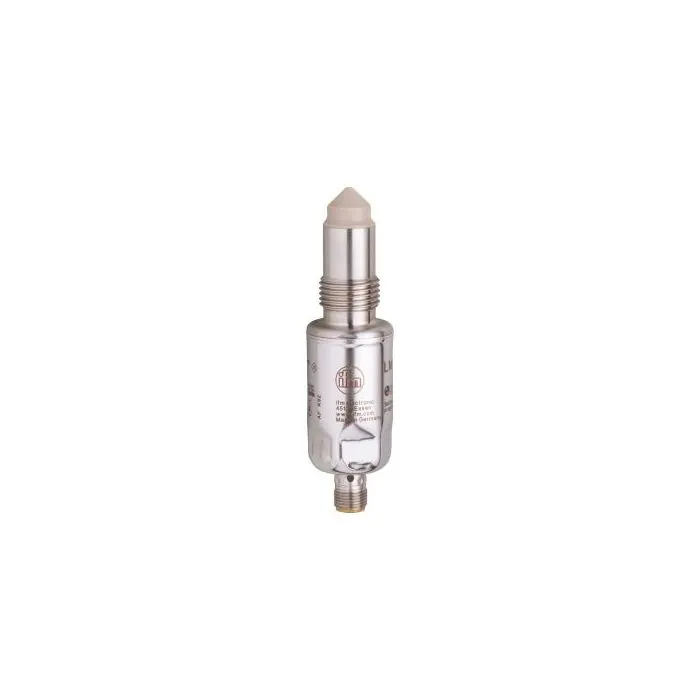

LMT100 \ efector 160 \ Level sensor \ LMACE-A12E/QSKG/0/US \ DE

Details of LMT100 \ efector 160 \ Level sensor (Level Sensor) \LMACE-A12E/QSKG/0/US \ DE

LMT100 \ efector 160 \ Level sensor (Level Sensor) \LMACE-A12E/QSKG/0/US \ DE Point level sensor, adjustable for various media contact applications.

• Easy to set up via IO-Link system
• Can be used for both food industry and general level measurement applications
• Suitable for powders, liquids, and viscous media
• Adjustable through I/O Link to detect only the actual medium without detecting bubbles or residues on the sensor
• Housing made of stainless steel 316L, material in contact with food is PEEK for maximum cleanliness
• Mounted with G½A, G¾A, and G1A threads
• Operating voltage: 18...30 VDC
• Size M30x113-355 mm.
• Dustproof and waterproof standard IP68/IP69K

The LMT100 \ efector 160 \ Level sensor (Level Sensor) \LMACE-A12E/QSKG/0/US \ DE is used to measure the level of liquids in tanks, such as water bottling plants, milk powder production plants, or for measuring levels in tanks with a lot of foam, like beer breweries and sour milk factories. It can also be used to measure the level of viscous media, such as chili sauce manufacturing plants.

Technical Data LMT100 \ efector 160 \ Level sensor (Level Sensor) \LMACE-A12E/QSKG/0/US \ DE

• Number of inputs and outputs : Number of digital outputs: 2
• Factory setting : hydrous media
• Process connection : threaded connection G 1/2 sealing cone
• Special feature : Gold-plated contacts
• Media : Liquids; viscous media; powder
• Cannot be used for : See the operating instructions, chapter "Function and features".
• Probe length[mm] : 11
• Tank pressure : -1...40 bar   -0.1...4 MPa
• MAWP (for applications according to CRN)[bar] : 40
• Operating voltage[V] : 18...30 DC
• Current consumption[mA] : < 50
• Protection class : III
• Reverse polarity protection : yes
• Measuring principle : capacitive
