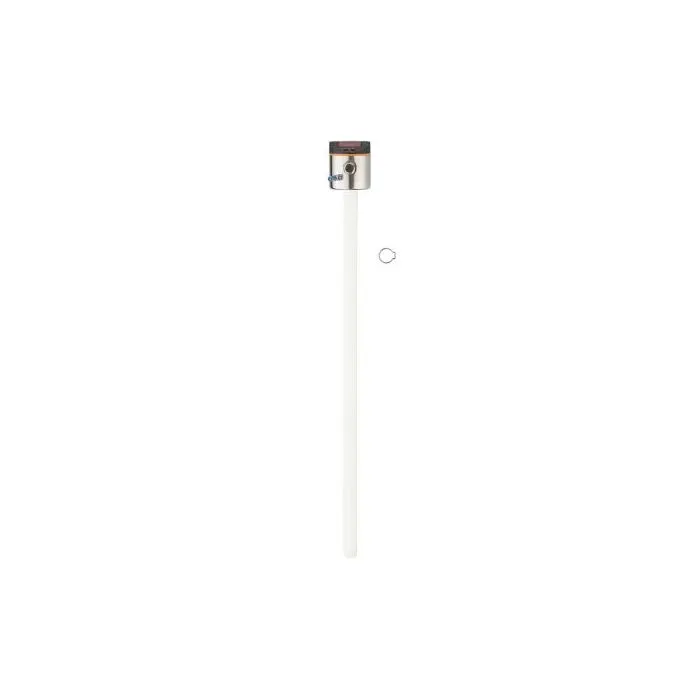

LK3123 \ efector 160 \ Level sensor \ LK0472B-B-00KLPKG/US \ DE

Details of LK3123 \ efector 160 \ Level sensor (Level Sensor) \LK0472B-B-00KLPKG/US \ DE

LK3123 \ efector 160 \ Level sensor (Level Sensor) \LK0472B-B-00KLPKG/US \ DE Continuous level sensor from ifm for measuring and controlling the flow of various liquids in industrial manufacturing processes

Features of LK3123 \ efector 160 \ Level sensor (Level Sensor) \LK0472B-B-00KLPKG/US \ DE

• Application Hydrous coolants, oils, water, media similar to water
• Cannot be used for: extremely conductive and adhering media, granulates and bulk materials, acids and alkalis, food and electroplating applications
• Dielectric constant medium > 2
• Medium temperature oil
• - Continuous [°C] 0...70
• - Short time [°C] 0...90
• Medium temperature water and hydrous media [°C] 0...35 (LK3123 + E43101: 0...60) **)
• Medium temperature coolant emulsions [°C] 0...35 (LK3123 + E43101: 0...60) **)
• Maximum speed of the change of level [mm/s] 200
• Electrical design DC PNP
• Operating voltage [V] 18...30 DC
• Current consumption [mA] < 60
• Protection class III
• Reverse polarity protection yes
• Probe length L [mm] 472
• Active range A [mm] 390
• Inactive range I1 / I2 [mm] 53 / 30
• Overflow switch point OP [mm] 139 - 163 - 188 - 212 - 236 - 261 - 285 - 310 - 334 - 358 - 383 - 407
• Hysteresis OP [mm] 3
• Ambient temperature [°C] 0...60
• Storage temperature [°C] -25...80
• Maximum vessel pressure [bar] 0.5 (when mounted with mounting accessories E43001 - E43007)
• Protection IP 67
• Materials (wetted parts) PP
• Housing materials stainless steel (304S15); FKM; NBR; PBT; PC; PEI; PP; TPE / V
• Weight [kg] 0.402
