LR3000 efector 160 Level sensor LR0000B-BR34AMPKG/US DE

Details of LR3000 \ efector 160 \ Level sensor (Level Sensor) \LR0000B-BR34AMPKG/US \ DE

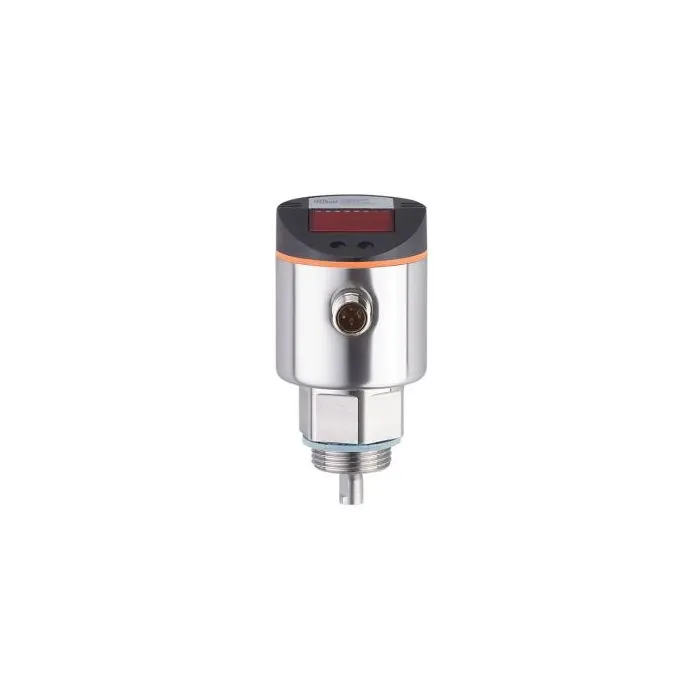

LR3000 \ efector 160 \ Level sensor (Level Sensor) \LR0000B-BR34AMPKG/US \ DE Continuous level measuring sensor for water, oil and coolant fluids.

• Easy to set up via IO-Link system
• Continuous measurement range: 10-160 cm
• Operating temperature range: 0...80°C
• Included with a 4-digit LED display for direct readout of measurements
• Includes PNP switching output and analog 4...20mA / 0...10V output in one unit
• Supply voltage: 19...36 VDC
• Dimensions: 50x87x63 mm.
• Dustproof and waterproof standard IP67

The LR3000 \ efector 160 \ Level sensor (Level Sensor) \LR0000B-BR34AMPKG/US \ DE is suitable for continuous level measurement in tanks such as lubricating oil or chemical substances that require constant monitoring.

Technical Data LR3000 \ efector 160 \ Level sensor (Level Sensor) \LR0000B-BR34AMPKG/US \ DE

• Number of inputs and outputs : Number of digital outputs: 1; Number of analogue outputs: 1
• Probe length L[mm] : 100...1600
• Process connection : threaded connection G 3/4 external thread
• Special feature : Gold-plated contacts
• Application : for industrial applications
• Media : Liquids
• Dielectric constant of the medium : ≥ 1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation)
• Recommended media : water; hydrous media; oils; oil-based media
• Cannot be used for : See the operating instructions, chapter "Function and features".
• Process temperature[°C] : -25...80; (90 < 1 h ; see note under remarks)
• Pressure rating[bar] : 16
• Vacuum resistance[mbar] : -1000
• MAWP (for applications according to CRN)[bar] : 16
• Operating voltage[V] : 18...30 DC
• Current consumption[mA] : < 30
• Protection class : III
• Reverse polarity protection : yes
• Power-on delay time[s] : < 3
• Measuring principle : guided wave radar
