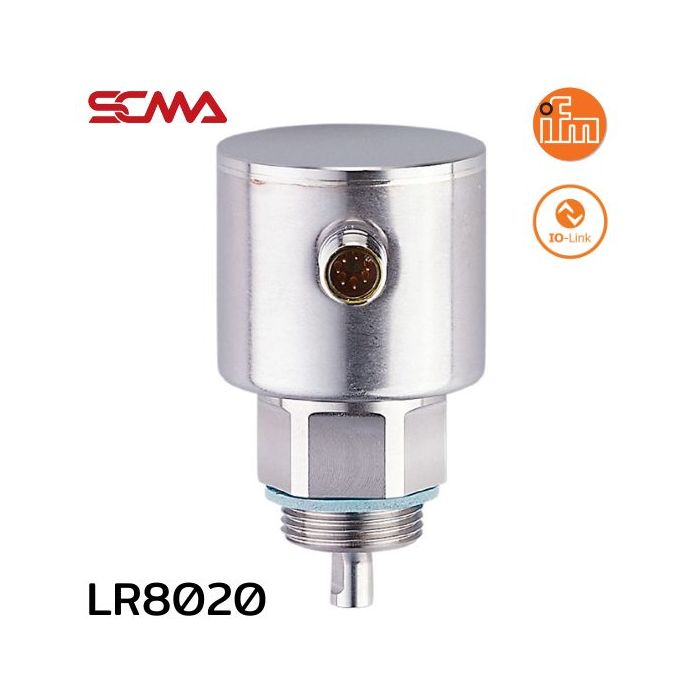

LR8020 \ effector 160 \ Level sensors \ LR0000--BR34ASPKG/US \ RO \

Details LR8020 \ efector 160 \ Level sensors \ LR0000--BR34ASPKG/US \ RO \

LR8020 \ efector 160 \ Level sensors \ LR0000--BR34ASPKG/US \ RO \ A guided wave radar sensor and IO-Link system can measure liquids and oils. The probe has a maximum length of 2 meters • Probe lengths from 10...200 cm • Customizable probe lengths as required • Compact design for limited spaces • Up to 4 analog outputs, and data transmission via e IO-Link • Easy parameter setting through the IO-Link system using PC or IO-Link Master

Features LR8020 \ efector 160 \ Level sensors \ LR0000--BR34ASPKG/US \ RO \

• Number of digital outputs : 4
• Probe length L[mm] : 100...2000
• Process connection : threaded connection G 3/4 external thread
• Media : Liquids
• Recommended media : water; hydrous media; oils; oil-based media
• Process temperature[°C] : -25...80
• Pressure rating : 16 bar
• Vacuum resistance : -1000 mbar
• Operating voltage[V] : 18...30 DC
• Measuring principle : guided wave radar
• Output signal : switching signal; IO-Link
• Electrical design : PNP/NPN
• Output function : normally open / normally closed
• Ambient temperature[°C] : -25...60
• Protection : IP 68; IP 69K
• Connection : Connector M12
