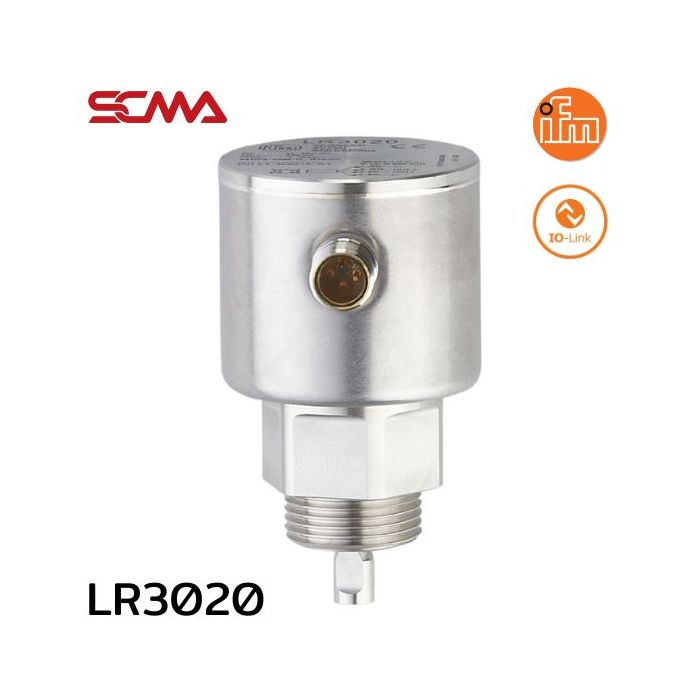

LR3020 \ efector 160 \ Level sensors \ LR0000--BR34AMDKG/US \ RO

Details LR3020 \ efector 160 \ Level sensors \ LR0000--BR34AMDKG/US \ RO \

LR3020 \ efector 160 \ Level sensors \ LR0000--BR34AMDKG/US \ RO \ Transparent measuring tube and IO-Link system can measure liquids and oils. Probe length up to 2 meters • Probe lengths: 10...200 cm • Customizable probe length according to requirements • Compact design for limited space • Up to 4 analog outputs and evaluation via e IO-Link system • Easy parameter setting through the IO-Link system using a PC or an IO-Link master

Features LR3020 \ efector 160 \ Level sensors \ LR0000--BR34AMDKG/US \ RO \

• Number of digital outputs : 1
• Number of analogue outputs : 1
• Probe length L[mm] : 100...2000
• Process connection : threaded connection G 3/4 external thread
• Media : Liquids
• Recommended media : water; hydrous media; oils; oil-based media
• Process temperature[°C] : -25...80
• Pressure rating : 16 bar
• Vacuum resistance : -1000 mbar
• Operating voltage[V] : 18...30 DC
• Measuring principle : guided wave radar
• Output signal : switching signal; analogue signal; IO-Link
• Electrical design : PNP/NPN
• Output function : normally open / normally closed
• Analog current output[mA] : 4...20
• Ambient temperature[°C] : -25...60
• Protection : IP 68; IP 69K
• Connection : Connector M12
