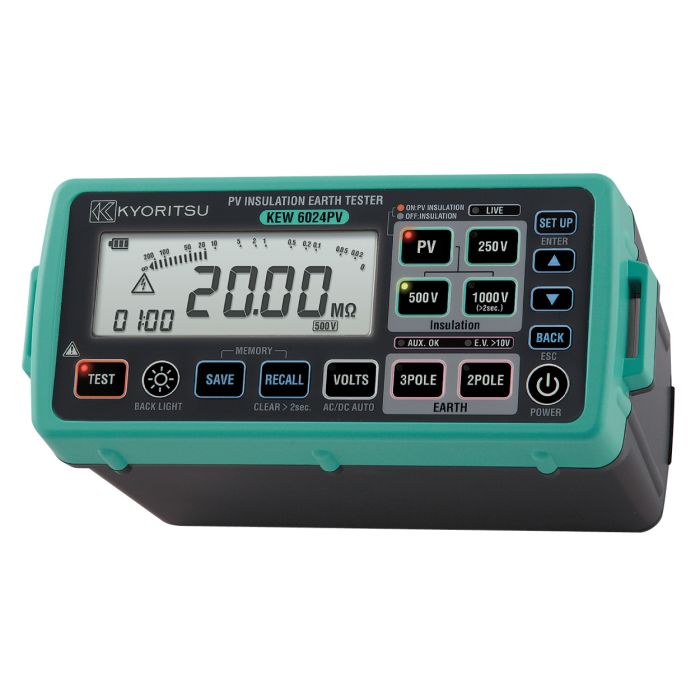

KYORITSU Kew 6024PV PV Insulation Earth Tester

Details of KYORITSU PV Insulation Earth Testers Model KEW 6024PV

The KYORITSU PV Insulation Earth Testers model KEW 6024PV comes with dimensions of 84x184x133 mm and a weight of 900 grams, making it portable for use in any location. It can accurately measure insulation values even when the PhotoVoltaic (PV) arrays are producing electricity. Additionally, it features a 4 IN 1 testing function: PV Insulation, Insulation, Earth, Volts.

• No need to disconnect the PV panels or test at night to measure insulation values.
• Measures earth resistance using VoltAmperometric method at three-point and two-point locations.
• Automatic discharge with display of voltage and measured value.
• Memory capacity up to 1000 data entries.
• Generate measurement reports via USB port using the included "KEW Report" software.

Technical Data of KYORITSU PV Insulation Earth Testers Model KEW 6024PV

• Test voltage 500V 1000V 250V 500V 1000V
• Measuring range (Auto range) 20.00 / 200.0 / 2000MΩ 20.00 / 200.0 / 2000MΩ
• Accuracy ±1.5%rdg ±5dgt ±1.5%rdg ±5dgt
• Earth resistance 20.00 / 200.0 / 2000Ω
• Accuracy ±3.0%rdg ±0.1Ω (20Ωrange), ±3.0%rdg ±3dgt (200/2000Ωrange)
• Voltage measurement AC 5~600V (45-65Hz), DC ±5~±1000V ±1.0%rdg ±4dgt
• Applicable Standards IEC 61010-1 CAT III 600V, CAT IV 300V Pollution2, IEC 61010-2-030, IEC 61010-031(EMC), IEC60529 (IP54), IEC 61557-1,-2,-5,-10, IEC 61326-1,2-2, EN 50581 (RoHS)
