3161A KYORITSU Analog Insulation Testers

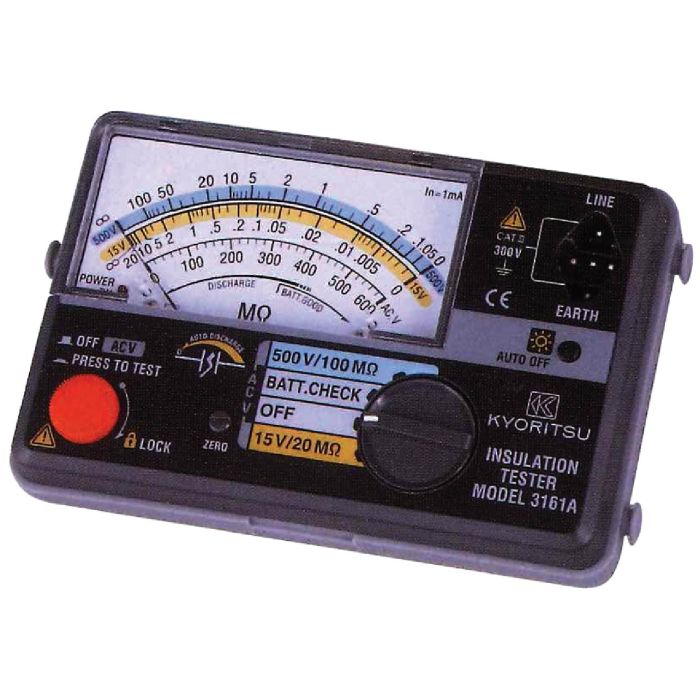

KYORITSU Analog Insulation Tester Model 3161A

The KYORITSU Analog Insulation Tester model 3161A is a lightweight and compact insulation resistance meter, weighing only 340 grams including the battery. It can measure multiple ranges in one unit.

• It has an automatic discharge circuit for discharging accumulated electrical charge from the measured circuit.
• The test leads are controlled by a grip handle.
• A new meter design, exceptionally robust.
• It has a light for viewing measured values in dark environments.

Technical Data KYORITSU Analog Insulation Tester Model 3161A

• DC Test Voltage 15V / 500V
• Max. effective scale value 20MΩ / 100MΩ
• Mid-scale value 0.05MΩ / 2MΩ
• First effective measuring range 0.005~2MΩ / 0.1~50MΩ
• Accuracy ±5% of Indicated Value
• AC voltage range 600V±3% of Full Scale
• Safety Standard IEC / EN 61010-1 CAT III 300V, CAT II 600V
• Power source R6 (AA) (1.5V) x 4
• Dimensions / Weight 90(L) x 137(W) x 40(D) mm / 340g approx
• Included Accessories 7149A (Remote control switch set), Neck Strap, R6 (AA) x 4, Instruction Manual
• Optional Accessories 7116 (Extension Probe), 8016 (Hook type prod)
