3131A KYORITSU Analog Insulation Testers

Features of KYORITSU Insulation Tester Model 3131A

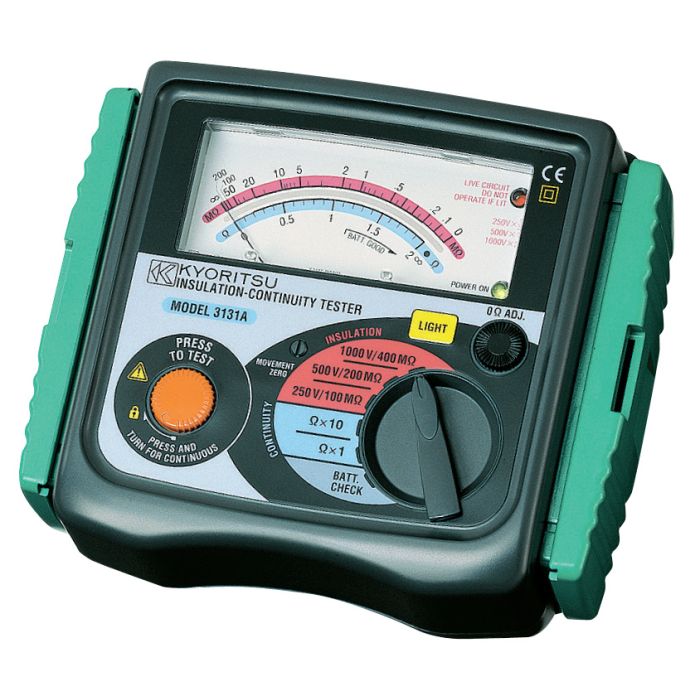

KYORITSU Insulation Tester Model 3131A ANALOG INSULATION TESTERS (Below 1kV)

• Measures insulation resistance up to 250V/100MΩ, 500V/200MΩ, 10000V/400MΩ
• Can measure continuity up to 20Ω
• Has a warning light when the circuit being tested has voltage present
• An automatic discharge system discharges from the test circuit immediately upon releasing the TEST button
• Protects circuits from damage using fuses (only for continuity range)
• Zero adjustment buttons are located on the front of the unit, making it convenient to use
• Has a light for illuminating readings in dark areas

Technical Data KYORITSU Insulation Tester Model 3131A

• Test voltage : 250V / 500V / 1000V
• Measuring ranges (Mid-scale value) : 100MΩ / 200MΩ / 400MΩ (1MΩ) / (2MΩ) / (4MΩ)
• Accuracy : 0.1~10MΩ / 0.2~20MΩ / 0.4~40MΩ (Guaranteed Accuracy Ranges) ±5% of indicated value
• Continuity measuring ranges : 2Ω / 20Ω ±3% of scale length
• Safety Standard : IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/2/4
• IP Rating / EMC Standard : IEC 60529-IP54 / IEC 61326-1
• Power source : R6 (AA) (1.5V) x 6
• Dimensions / Weight : 167(L) x 185(W) x 89(D)mm / 860g approx.
• Included Accessories : 7122B (Test leads), 8923 (F500mA/600V fuse) x 2, R6 (AA) x 6, 9121 (Shoulder Strap), Instruction Manual
