3165 KYORITSU Analog Insulation Testers

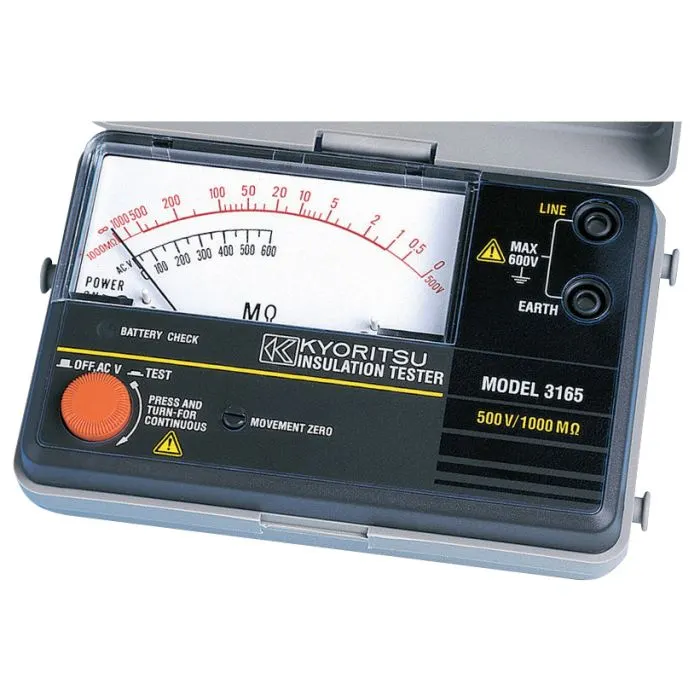

KYORITSU Analog Insulation Tester Model 3165

The KYORITSU model 3165 Analog Insulation Tester is a compact and lightweight device, making it easy to carry around. The test voltage range supports measurements up to 500V / 1000MΩ.

• Test Voltage Range 500V / 1000MΩ
• The insulation resistance scale is enlarged, making it easier to read values.
• The meter housing has a new design that is exceptionally sturdy.
• The AC voltage scale is easy to read.

Technical Data for KYORITSU Analog Insulation Tester Model 3165

• DC Test Voltage 500V
• Max. effective scale value 1000MΩ
• Mid-scale value 20MΩ
• First effective measuring range 1~500MΩ
• Accuracy ±5% rdg
• Second effective measuring ranges 0.5 / 1000MΩ
• Accuracy ±10% rdg
• AC voltage range 600V
• Accuracy ±3% of full scale value
• Power source R6 (AA) (1.5V) x 4
• Dimensions / Weight 90(L) x 137(W) x 40(D)mm / 330g approx
• Included Accessories 7025 (Test leads) 9067 (Pouch for test lead) Neck Strap R6 (AA) x 4 Instruction Manual
