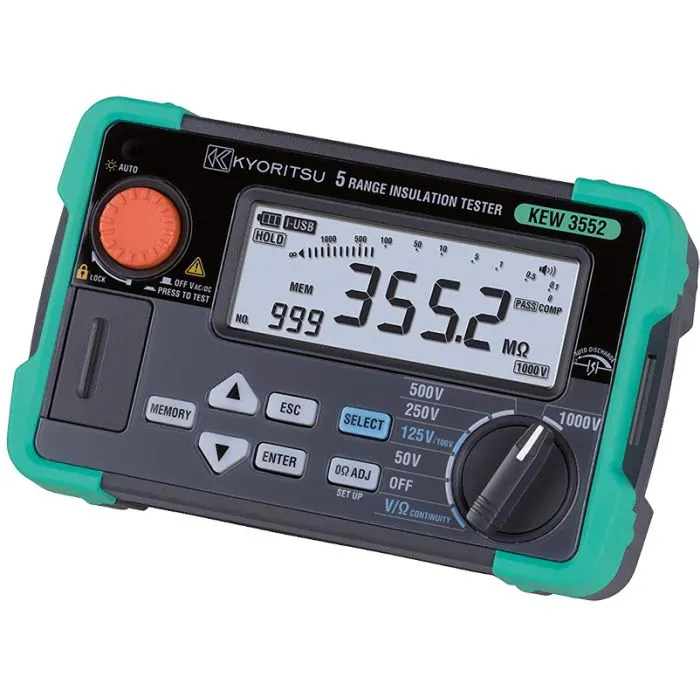

KYORITSU Kew 3552BT Digital Insulation Tester

KYORITSU Insulation Tester Model KEW 3552BT Features

KYORITSU Insulation Tester Model KEW 3552BT DIGITAL INSULATION TESTERS (1kV Below)

• Fastest measurement speed in the world (0.5 seconds)
• High insulation resistance measuring range up to 40GΩ
• Insulation diagnosis with PI / DAR functions
• Automatic discharge system that discharges residual charge in the circuit when the Test button is released
• The LCD screen changes to green or red depending on whether the measurement value passes or fails
• USB interface for generating test reports with KEW Report software (Optional)
• Bluetooth connectivity with "KEW CONNECT" application on smartphones

KYORITSU Insulation Tester Model KEW 3552BT Technical Data

• Test voltage : 50V / 100V / 125V / 250V / 500V / 1000V
• Measuring range : 100.0MΩ (50V) / 200.0MΩ (100V) / 50.0MΩ(125V) / 500.0MΩ (250V) / 20.00GΩ (500V) / 40.00GΩ (1000V) (Auto range) ±2%rdg ±2dgt
• Mid-scale value : 2MΩ (50V) / 5MΩ (100V/125V) / 10MΩ (250V) / 100MΩ (500V) / 200MΩ (1000V)
• Ω / Continuity : 40.00 / 400.0 / 4000Ω (Auto range) ±2.5%rdg ±8dgt
• Voltage range : AC : 2.0~600V (45~65Hz) / DC : ±2.0~±600V ±1%rdg ±4dgt
• Applicable standards : IEC 61010 CAT III 600V/CAT IV 300V, IEC 61557-1,2,4, IEC 61326-1,-2-2, IEC 60529 (IP40)
• Communication interface : USB / Bluetooth
• Included Accessories : 7260 (Test leads with remote control), 7261A (Test leads with alligator clip), 8017A (Extension prod long), 9173 (Carrying case), 9121 (Shoulder strap), LR6 (AA), (1.5V) x 4, Instruction manual
