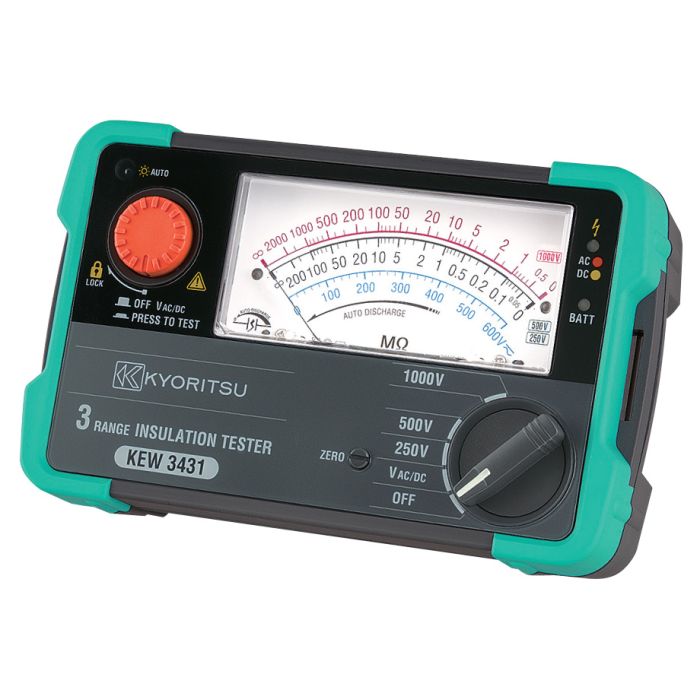

KEW 3431 KYORITSU Analog Insulation Testers

Features of KYORITSU Insulation Tester Model 3131A

KYORITSU Insulation Tester Model 3131A ANALOG INSULATION TESTERS (Below 1kV)

• Compact and lightweight design
• Backlit scale and LED lights provide visibility in low-light areas
• Built-in light sensor automatically turns the backlight on and off
• Test leads with remote control switch included as standard equipment
• Leakage current warning, LED will flash and an alarm sound will be emitted

Technical Data of KYORITSU Insulation Tester Model 3131A

• Test voltage : 250V 500V 1000V
• Max. effective scale value : 200MΩ 2000MΩ
• Mid-scale value : 5MΩ 50MΩ
• Accuracy : ±5% of indicated value
• Voltage measurement range : AC : 600V (45~65Hz) / DC : 600V ±5% of full scale value
• Applicable Standards : IEC 61010-1, 2-030 CAT III 600V, IEC 61557-1, IEC 61557-2, IEC 61010-031, IEC 61326 (EMC), EN 50581 (RoHS)
• Power source : LR6/R6 (AA) (1.5V) x 4
• Included Accessories : 7260 (Test lead with remote control switch), 7261 (Test lead with alligator clip), 9173(Carrying case), 8017A (Extension prod long), 9121 (Shoulder strap), LR6(AA) x 4, Instruction manual
• Optional Accessories : 7243A (L-shaped probe), 8016 (Hook type prod)
