3132A KYORITSU Analog Insulation Testers

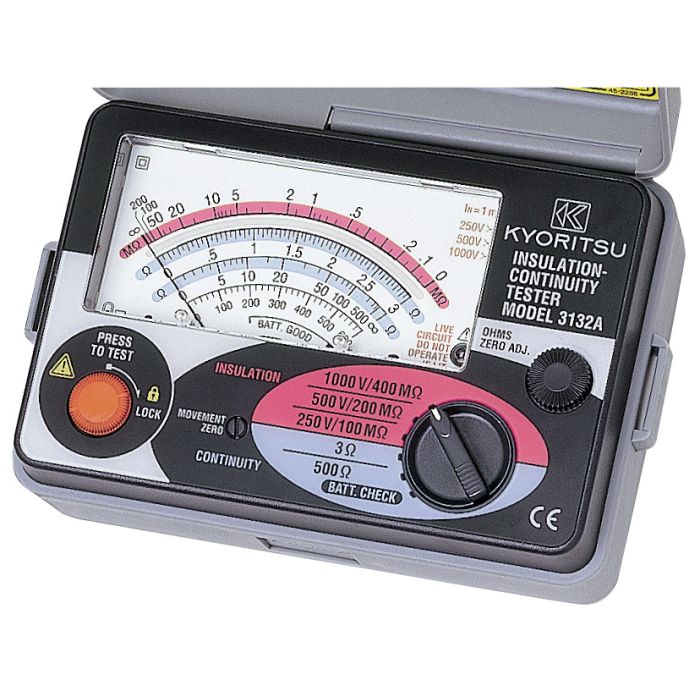

Details of KYORITSU Analog Insulation Tester Model 3132A

The KYORITSU Analog Insulation Tester model 3132A is compact, measuring only 106x160x72 mm and weighing just 560g, making it easy to carry. It also meets the IP54 dust and water protection standard according to IEC60529, ensuring safety compliance with IEC61010-1 and IEC61557.

• The minimum current during insulation resistance measurement is 1mA
• The circuit current for continuity testing is 200mA
• It has an automatic discharge circuit to discharge accumulated charge in the measured circuit
• There are sound and light alarms when the circuit being tested is energized
• The AC voltage scale has uniform intervals throughout, making readings easy to take.

Technical Data of KYORITSU Analog Insulation Tester Model 3132A

• Test Voltage 250V / 500V / 1000V
• Measuring Ranges (Mid-scale Value) 100MΩ / 200MΩ / 400MΩ (1MΩ), (2MΩ), (4MΩ)
• Accuracy 0.1~10MΩ / 0.2~20MΩ / 0.4~40MΩ (Guaranteed Accuracy Ranges) ±5% of indicated value
• Continuity Measuring Range 3Ω / 500Ω ±1.5% of scale length
• AC Voltage Range 0~600VAC ±5% of scale length
• Safety Standard IEC 61010-1 CAT III 600V Pollution Degree 2, IEC 61010-2-031, IEC 61557-1/2/4
• IP Rating / EMC Standard IEC 60529-IP54 / IEC 61326-1
• Power Source R6 (AA) (1.5V) x 6
• Dimensions / Weight 106(L) x 160(W) x 72(D)mm / 560g approx.
• Included Accessories 7122B (Test leads), 8923 (F500mA/600V fuse) x 2, R6 (AA) x 6, 9121 (Shoulder Strap), Instruction Manual
