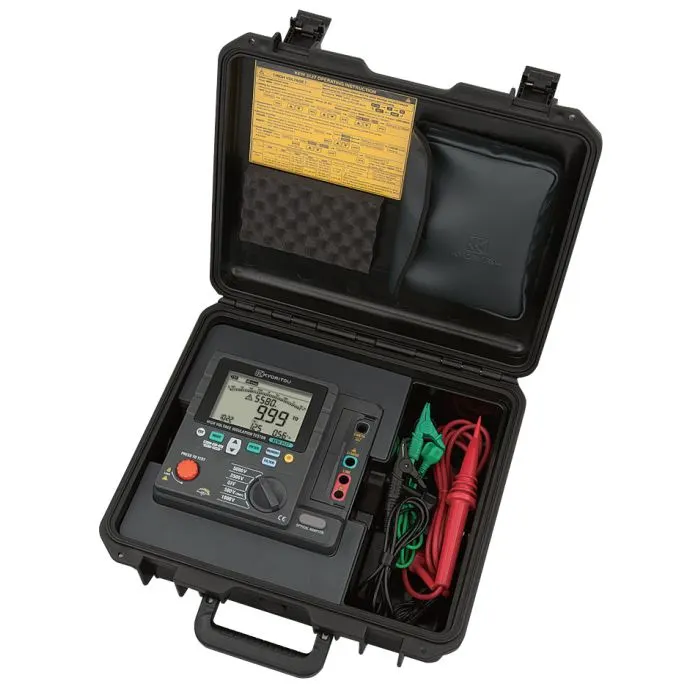

KEW 3127 KYORITSU Digital High Voltage Insulation Testers

Details of KYORITSU Insulation Tester Model KEW 3127

• Measures insulation resistance up to a maximum of 10TΩ
• Maximum leakage current up to 5mA
• Test voltage range from 250V to 5000V
• Insulation diagnosis with functions : IR, PI, DAR, DD, SV, RAMP, charge storage value and leakage current
• Wireless communication via Bluetooth for real-time data transmission to computers and Android devices
• Memory and logging functions can record values every second (logging) and save values upon completion of measurement (Memory)
• Filter function reduces interference signals for stable measurements
• Durable with IP65 rating (with cover closed) suitable for all environments
• Powered by rechargeable battery
• Dimensions : 208x225x130 mm
• Weight : 4 kg

Technical Data of KYORITSU Insulation Tester Model KEW 3127

• Test voltage 250V, 500V, 1000V, 2500V, 5000V
• Maximum measurement value 9.99GΩ, 99.9GΩ, 199GΩ, 999GΩ, 9.99TΩ
• Maximum short circuit current 5.0mA
• Voltage range AC : 30~600V (50/60Hz), DC : ±30~±600V ±2%rdg±3dgt
• Current range 0.00nA~5.50mA ±10%rdg
• Capacitance range 5.0nF~50.0µF, 5.0nF~25.0µF (5000V) ±5%rdg ±5dgt
• Applicable standards IEC 61010-1, 61010-2-030 CAT IV 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2
• Power source Rechargeable Battery (Lead-acid Battery) 12V Charging power : DC 15VA MAX
• Communication interface Bluetooth : Ver2.1 + EDR Class2, USB: Ver1.1
