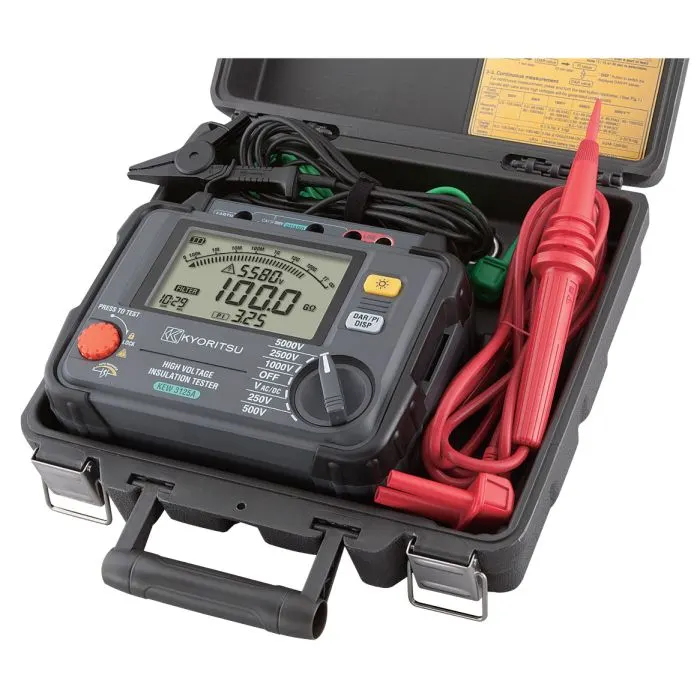

KEW 3125A KYORITSU Digital High Voltage Insulation Testers

Features of KYORITSU Insulation Tester Model KEW 3125A

• Large numeric display with Bar Graph and white backlight
• Polarization index (Pl) measurement function
• Dielectric Absorption Ratio (DAR)
• Displays output voltage and discharge voltage
• Complies with JEC61010-1 CAT. IV 300V / CAT. III 600V standards
• Dimensions: 177 x 226 x 100 millimeters
• Weight: 1.9 kilograms

Technical Data of KYORITSU Insulation Tester Model KEW 3125A

• Test voltage : 250V, 500V, 1000V, 2500V, 5000V
• Accuracy : 100.0MΩ ±5%rdg ±3dgt, 1000MΩ ±5%rdg ±3dgt, 2.00GΩ ±5%rdg ±3dgt,  100.0GΩ±5%rdg±3dgt, 1000GΩ ±5%rdg ±3dgt / 100GΩ or more ±20%rdg
• Short circuit current : 1.5mA
• Voltage Measuring range : AC : 30~600V (50/60Hz), DC : ±30~±600V ±2%rdg±3dgt
• Applicable standards : IEC 61010-1, 61010-2-030 CAT IV 300V / CAT III 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2
• Power source : DC12V : LR14/R14 x 8pcs
• Dimensions / Weight : 177(L) x 226(W) x 100(D)mm / 300(L) x 315(W) x 125(D)mm (Hard case) / 1.9kg approx. (including batteries)
• Included Accessories : 7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), 8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case), LR14 (Alkaline battery size C) x 8, Manual
