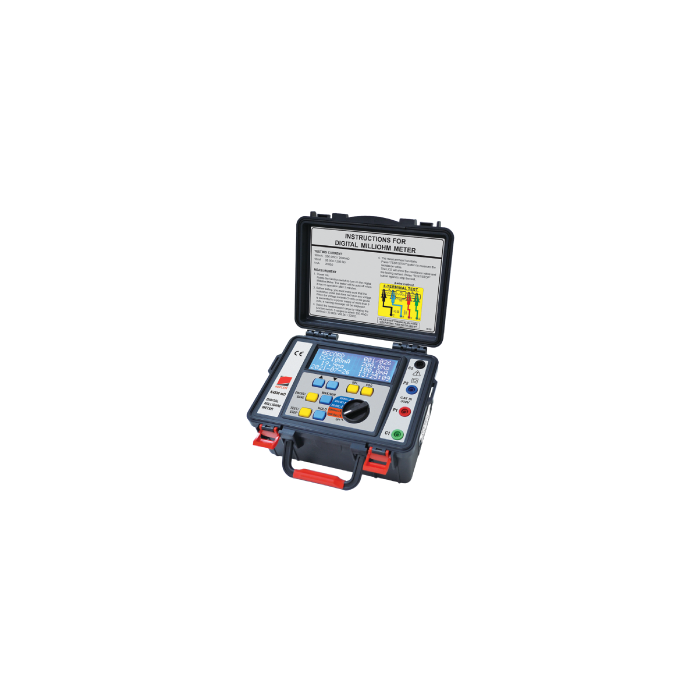

K4538 mO KEPLER Digital Milliohm Meter

Details of KEPLER  Digital Milliohm Meter (Digital Milliohm Meters)  K4538 mO

• Dust and water protection standard IP65 (with cover closed)
• Uses 4-wire measurement method for high accuracy
• Metering resolution up to 100µΩ (0.1mΩ)
• LCD display with 4 rows and 20 characters, showing all measurement parameters completely
• Memory can store up to 200 measurement values
• Automatically turns off when not in use
• Data Hold function (keeps the measured value)
• Max / Min functions
• Battery type: 1.5V "C" Battery, 8 pieces
• Long battery life with high stability
• Low battery warning symbol

Tech Specifications KEPLER  Digital Milliohm Meter (Digital Milliohm Meters)  K4538 mO

• Measuring ranges (mΩ) : 0~200.0mΩ in steps of 100uΩ / 0~2000mΩ in steps of 1mΩ, 0~20.00Ω in steps of 10mΩ / 0~200.0Ω in steps of 100mΩ, 0~2000Ω in steps of 1Ω
• Accuracy : ±0.8% of reading ±4 digits over the operating temperature range, 0~40°C, with the supplied test leads
• Test Current : 100mA : 200.0mΩ / 2000mΩ, 10mA : 20.00Ω / 200.0Ω, 1mA : 2000Ω
• Protection fuse : 200mA/600V x 1
• Operating temperature : 0°C~40°C
• Opreating humidity : 80% Maximum
• Dimensions / Weight : 250(L) x 190(W) x 126(D)mm / Approx. 2035g (Battery included)
• Power source : 1.5V "C" Battery x 8
• Safety standard : EN 61010-1 CAT III 300V. EN 61326-1
