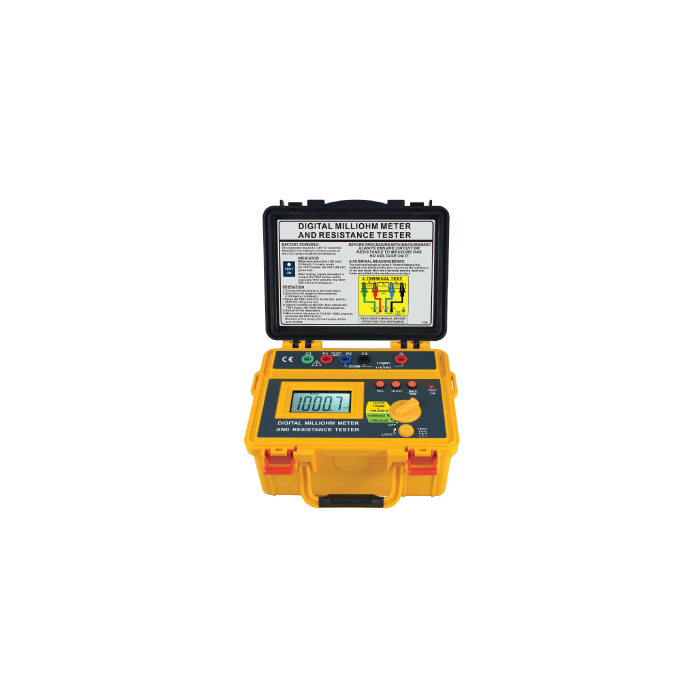

K4338 mO KEPLER Digital Milliohm Meter And Resistance Testers

Details of KEPLER Digital Milliohm Meter And Resistance Testers K4338 mO

• Uses 4-wire measurement method for high accuracy
• Test current 100mA at measuring range 1100.0mΩ
• Test current 10mA at measuring range 11000mΩ
• Makes measurements as low as 100µΩ (0.1mΩ)
• Large LCD display (68x34mm)
• Relative test mode available
• Data Hold function for retaining measurement values
• Max / Min functions included
• Battery life is long and stable
• Low battery warning symbol present

Tech Specifications KEPLER Digital Milliohm Meter And Resistance Testers K4338 mO

• mΩ measurement (4-wire method)
  • Measuring ranges (mΩ) : 0~1100.0mΩ in steps of 100µΩ / 0~11000mΩ in steps of 1mΩ
  • Accuracy : ±0.8% of reading ±4 digits over the operating temperature range 0°C~40°C, with the supplied test leads
• Resistance measurement Auto-ranging (2-wire method)
  • Range : 110.00Ω, 1.1000kΩ, 11.000kΩ, 110.00kΩ, 1.1000MΩ, 11.000MΩ, 110.0MΩ
  • Resolution : 0.01Ω, 0.1Ω, 1Ω, 10Ω, 100Ω, 1kΩ, 100kΩ
  • Accuracy : 0~2MΩ: ±(1.2%rdg+3dgt) 2~40MΩ: ±(2.0%rdg+4dgt) 40~110MΩ: ±(8.0%rdg+4dgt)
  • Protection fuse : 200mA / 250V x 1
  • Power source : 1.5V "C" battery x 8
  • Safety standard : EN 61010-1, EN 61326-1
