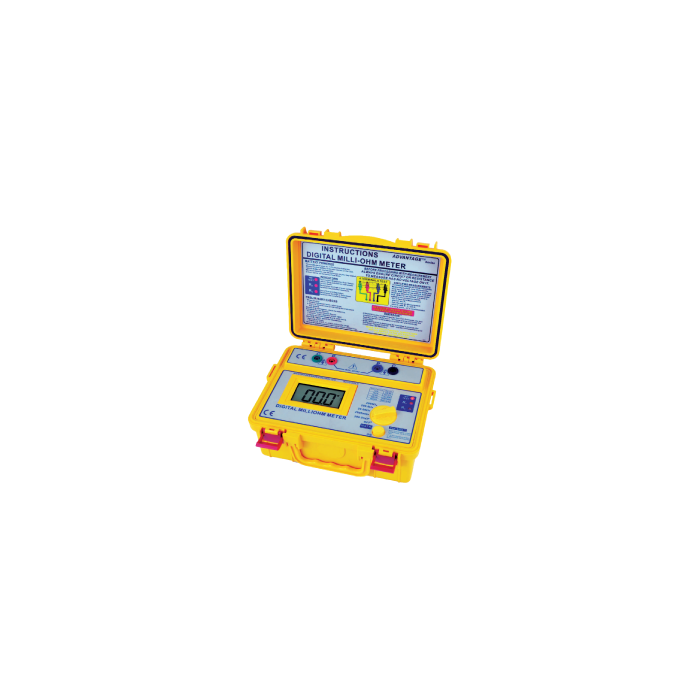

K4137 mO KEPLER Digital Milliohm Meter

Details of KEPLER Digital Milliohm Meters  K4137 mO

• Uses a microprocessor for control
• Employs 4-terminal measurement principle, providing high accuracy
• Makes measurements as low as 100uΩ
• Has 5 measuring ranges : 200.0mΩ~2000Ω
• Large LCD display screen
• Data Hold function to retain measurement values
• Automatic power-off when not in use
• Lightweight, durable and compact design
• Status indicator lights show that the reading may be inaccurate (RP, RC, and temperature)

Tech Specifications KEPLER Digital Milliohm Meters  K4137 mO

• Measuring ranges : 0~200.0mΩ in steps of 100µΩ, 0~2000mΩ in steps of 1mΩ, 0~20.00Ω in steps of 10mΩ, 0~200.0Ω in steps of 100mΩ, 0~2000Ω in steps of 1Ω
• Accuracy : ±0.5% of reading ±2 digits
• Test current : 1mA = >2000Ω range ±0 1% / 10mA = >200Ω / 20Ω, ranges ±0.1% / 100mA = >2000mΩ / 200mΩ ranges ±0.1%
• Maximum output voltage (C1~C2) : 20V
• Dimensions : 250(L) x 190(W) x 110(D)mm
• Weight : 1500g
• Safety standard : EN 61010-1 CAT IV 20V, EN 61323-1
