AC1421 \ ecomat 300 \ AS-i \ AS-i Gateway 1Master EIP \ DE

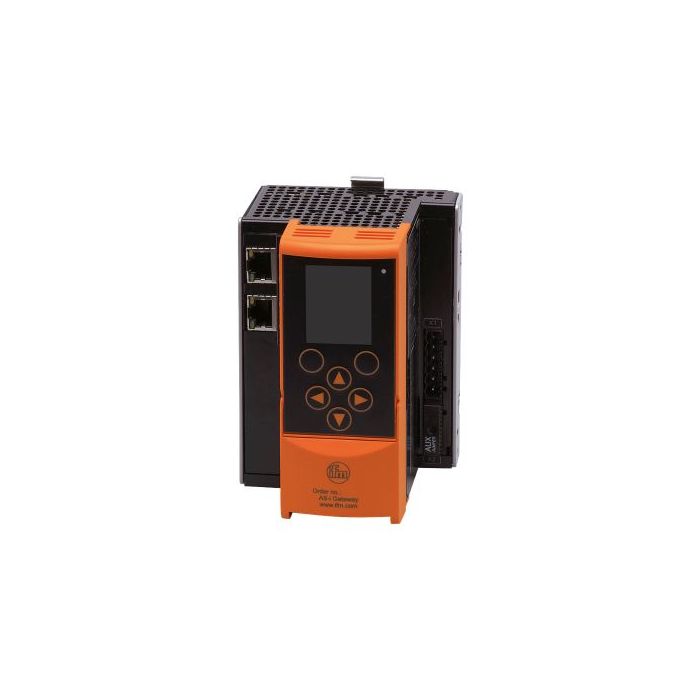

Details of AC1421 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master EIP \ DE

AC1421 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master EIP \ DE is the latest As-i Gateway that can monitor operations through a network.

• Suitable for all Slave modules under As-i Specification 1.0 to 3.0
• Check and analyze communication systems via a color display, making it easy to see and verify
• Includes an address check system for Slave modules in the system
• Has PLC communication ports as Profinet 2 Port and supports ClassB standards
• Supports ProfibusDP, ProfiNet, EtherNet, EtherCAT for monitoring / reading / controlling
• Use a smartphone to monitor through a network
• Operating voltage: 18...32 VDC (Aux) / 21...31 (AS-i)
• Dimensions: 93x135.5x106.2 mm.
• Dust protection standard IP20

The application of AC1421 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master EIP \ DE is to connect PLCs, acting as I/O Cards and checking the operation of I/O connected to the As-i system. If the I/O cannot function properly, a message will be displayed on the screen.

Technical Data AC1421 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master EIP \ DE

• Application : EtherNet/IP gateway
• Operating voltage[V] : 18...32 DC; (AUX; AS-i: 21...31,6 V DC)
• Current consumption[mA] : < 500; (AUX / AS-i 1)
• Max. current consumption from AS-i[mA] : 500; (with external supply: 10 mA)
• Number of AS-i masters : 1
• Electrical isolation : yes
• Voltage range DC[V] : to PELV
• Communication interface : Ethernet
