AC1401 \ ecomat 300 \ AS-i \ AS-i Gateway 1Master PN \ DE

Details of AC1401 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PN \ DE

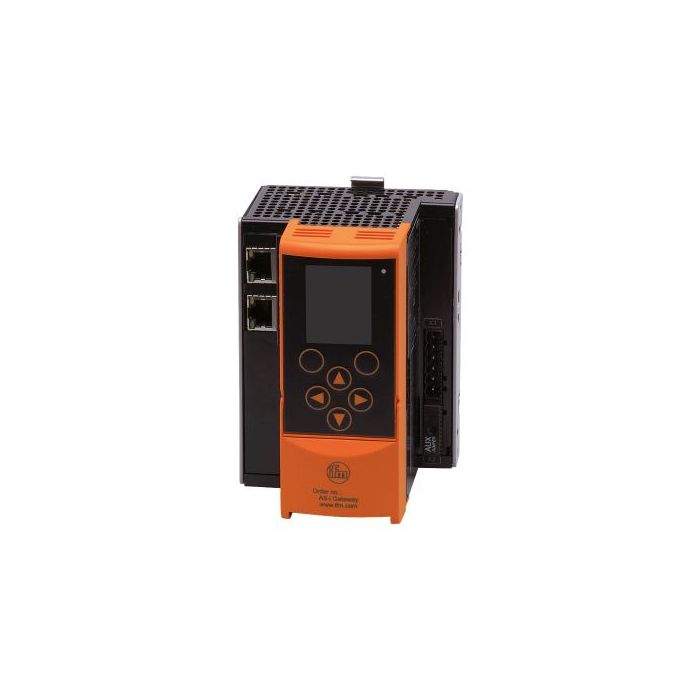

AC1401 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PN \ DE is the latest top-of-the-line As-i Gateway that can monitor operations over a network.

• Suitable for all Slave modules under As-i Specification 1.0 to 3.0
• Check and analyze communication systems via a color screen, making it easy to see and verify
• Has an address checking system for Slave modules in the system
• Features a Profinet 2 Port PLC communication port and supports ClassB standard
• Supports ProfibusDP, ProfiNet Ethernet, EtherCAT for monitoring / reading / controlling
• Use Smartphone to monitor through network
• Operating voltage: 18...32 VDC (Aux) / 21...31 VDC (AS-i)
• Dimensions: 93x135.5x106.2 mm.
• Dust protection standard IP20

The AC1401 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PN \ DE is used to connect with PLC, acting as an I/O Card and checking the operation of I/O connected to the As-i system. If the I/O cannot function properly, a message will be displayed on the screen.

Technical Data AC1401 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PN \ DE

• Application : PROFINET gateway
• Operating voltage[V] : 18...32 DC; (AUX; AS-i: 21...31.6 V DC)
• Current consumption[mA] : < 500; (AUX / AS-i 1)
• Max. current consumption from AS-i[mA] : 500; (with external supply: 10 mA)
• Number of AS-i masters : 1
• Electrical isolation : yes
• Voltage range DC[V] : to PELV
• Communication interface : Ethernet
