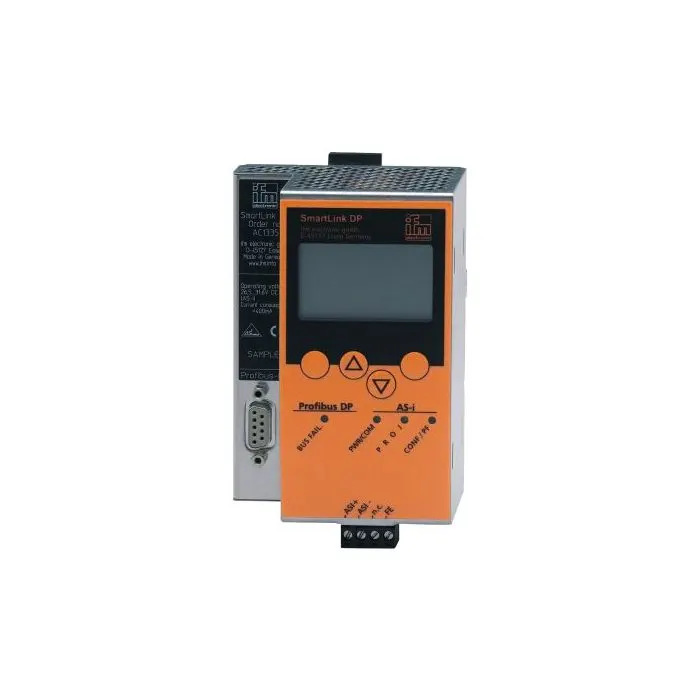

AC1375 \ ecomat 300 \ AS-i \SmartLink M4 DP 1Master \ DE

Details of AC1375 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \SmartLink M4 DP 1Master \ DE

AC1375 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \SmartLink M4 DP 1Master \ DE The latest As-i Gateway for single-wire installation.

• Suitable for all Slave modules under As-i Specification 1.0 to 3.0
• Communications system check and analysis displayed on the screen
• Analog Values module support, including 0~20 mA, 4~20mA, 0~10V, and pt100
• Supports various communication systems such as Profibus, DPV0 and DPV1, Canopen, Devicenet, Ethernet/IP, and Modbus TCP
• Operating voltage: 24 VDC
• Dimensions: 86x131x107 mm.
• Dust protection standard IP20

The AC1375 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \SmartLink M4 DP 1Master \ DE is used to connect with PLCs, acting as an I/O Card and monitoring the operation of I/O connected to the As-i system. If the I/O cannot function properly, a message will be displayed on the screen.

Technical Data AC1375 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \SmartLink M4 DP 1Master \ DE

• Application : PROFIBUS DP gateway
• Operating voltage[V] : 26.5...31.6 DC; (AS-i)
• Insulation rating[V] : 500
• Max. current consumption from AS-i[mA] : 200
• Max. power consumption[VA] : 4
• Number of AS-i masters : 1
• Electrical separation : yes
• Electrical design : AS-i
• Communication interface : PROFIBUS
• Transmission standard : EN 50170
• Transmission rate : 12 MBaud
• Protocol : Profibus DP
• Usage type : Data transmission
• Note on interfaces : Diagnostic function
