AC1411 \ ecomat 300 \ AS-i \ AS-i Gateway 1Master PB \ DE

Be the first to review this product
Special Price THB 51,300.00 Regular Price THB 68,400.00
In stock
SKU
011446
In stock: 5 pcs

Delivery within: 23/09/2569

🚚 Free shipping on orders over ฿2,500! (normally ฿100)

Add to Wish List Add to Compare

ifm electronic, efector, as-i, as-interface, two-wire installation, single-wire installation, factory automation, controllers for AS-interface system, AS-i Controllers, AS-i Gateways, AS-i masters, Industry 4.0, Industry 3.5, Online virtual, Pepperl+Fuchs, Keyence

*Price does not include VAT

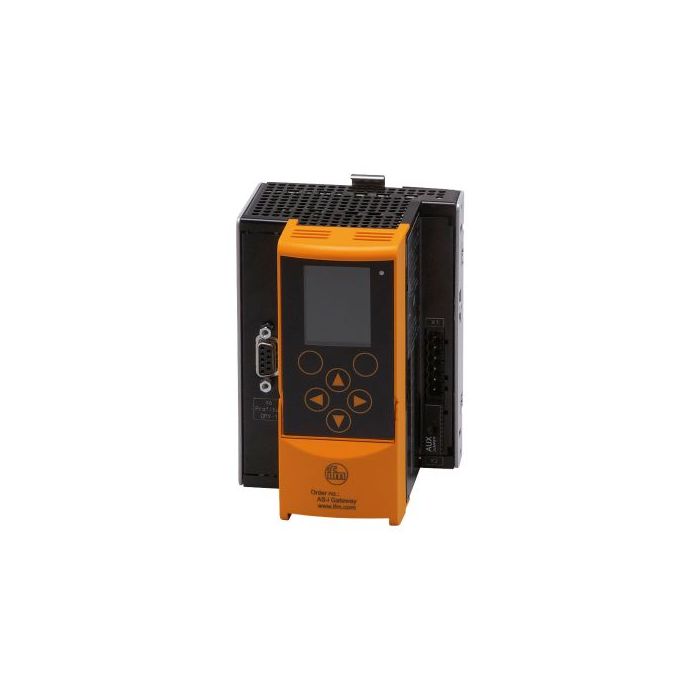

main product photo

Details of AC1411 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PB \ DE

AC1411 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PB \ DE is the latest top-of-the-line As-i Gateway that can monitor operations through a network.

  • Suitable for all Slave modules under As-i Specification versions 1.0 to 3.0
  • System communication analysis and monitoring via color display, making it easy to see and check
  • Has an address checking system for Slave modules in the system
  • Supports PLC communication ports as Profinet 2 Port with ClassB standard compliance
  • ProfibusDP ProfiNet Ethernet EtherCAT support for monitoring / reading / controlling operations through these interfaces
  • Monitor via network using a smartphone
  • Operating voltage: 18...32 VDC (Aux) / 21...31 (As-i)
  • Dimensions: 93x135.5x106.2 mm.
  • Dust protection standard IP20

The AC1411 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PB \ DE is used to connect with PLCs, acting as an I/O card and monitoring the operation of I/O connected to the As-i system. If the I/O cannot function properly, a message will be displayed on the screen.

Technical Data AC1411 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PB \ DE

  • Application : PROFIBUS gateway
  • Operating voltage[V] : 18...32 DC; (AUX; AS-i: 21...31,6 V DC)
  • Current consumption[mA] : < 500; (AUX / AS-i 1)
  • Max. current consumption from AS-i[mA] : 500; (with external supply: 10 mA)
  • Number of AS-i masters : 1
  • Electrical isolation : yes
  • Voltage range DC[V] : to PELV
  • Communication interface : Ethernet; PROFIBUS
  • Transmission rate : 10 MBaud; 100 MBaud
  • Connector type : RJ45
  • Protocol : Modbus TCP
  • Usage type : programming
  • Transmission rate : 10 MBaud; 100 MBaud
  • Connector type : RJ45
  • Protocol : TCP/IP
  • Usage type : programming
  • Transmission rate : 10 MBaud; 100 MBaud
  • Connector type : RJ45
  • Protocol : UDP/IP
  • Usage type : programming
  • Transmission standard : EN 50170
  • Transmission rate : 12 MBaud
  • Protocol : Profibus DP
  • Usage type : data transmission
  • Version : DPV0; DPV1
  • Ambient temperature[°C] : 0...60
  • Storage temperature[°C] : -20...70
  • Protection : IP 20

AC1411 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 1Master PB \ DE
