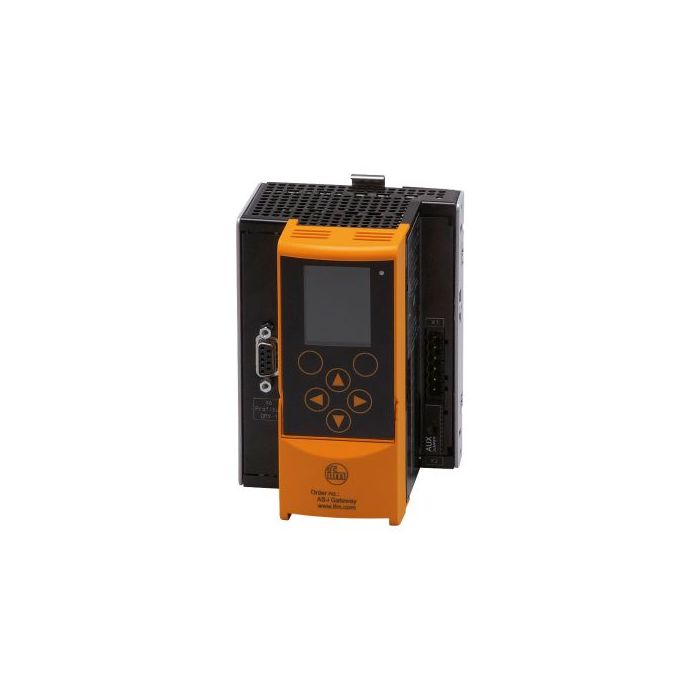

AC1412 \ ecomat 300 \ AS-i \ AS-i Gateway 2Master PB \ DE

Details of AC1412 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 2Master PB \ DE

AC1412 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 2Master PB \ DE The latest top-of-the-line As-i Gateway that can monitor operations through the network.

• Suitable for all modules (Slaves) under As-i Specification 1.0 to 3.0
• Check and analyze communication systems via a color screen, making it easy to see and verify
• Has an address checking system for modules (slaves) in the system
• The PLC communication port is Profinet 2-port and supports ClassB standard
• ProfibusDP Profinet Ethernet EtherCAT support for monitoring / reading / controlling through
• Use a smartphone to monitor via the network
• Operating voltage: 18...32 VDC (AUX) / 21...31 (As-i)
• Dimensions: 93x135.5x106.2
• Has I[20 protection standard

The application of AC1412 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 2Master PB \ DE is to connect with PLC, acting as an I/O card and checking the operation of I/O connected to the As-i system. If the I/O cannot work properly, a message will be displayed on the screen.

Technical Data AC1412 \ ecomat 300 \ AS-i (Machine control device for AS-interface system) \AS-i Gateway 2Master PB \ DE

• Application : PROFIBUS gateway
• Operating voltage[V] : 18...32 DC; (AUX; AS-i: 21...31,6 V DC)
• Current consumption[mA] : < 500; (AUX / AS-i 1)
• Max. current consumption from AS-i[mA] : 500; (with external supply: 10 mA; AS-i 2: 10 mA)
• Number of AS-i masters : 2
• Electrical isolation : yes
• Voltage range DC[V] : to PELV
• Communication interface : Ethernet; PROFIBUS
