SANGI RT-500~500C PT100 RTD Transmitter

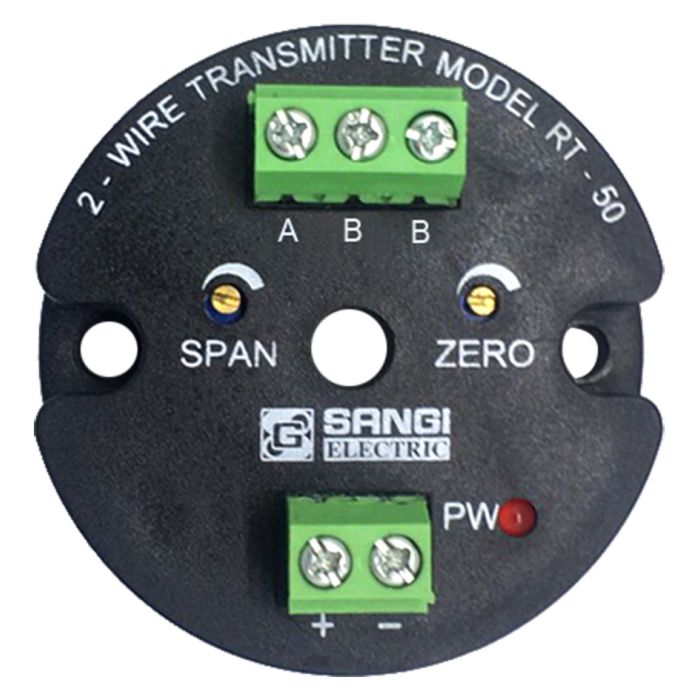

Details of SANGI Signal/RTD Transmitter Model RT-500~500C PT100

SANGI Signal/RTD Transmitter model RT-500~500C PT100 is a signal converter with two input types.

• RT-50 accepts RTD (PT-100) input
• TT-50 accepts thermocouple (TC) Type K, J input

This unit can be installed inside the sensor housing due to its standard DIN A size, providing high accuracy for use even when wiring between the measurement point and controller is over long distances.

SANGI Signal/RTD Transmitter model RT-500~500C PT100 is cost-effective compared to using compensation lead wire for wiring between sensors and controllers at a distance. It is suitable for use where the sensor and control cabinet are far apart, as well as when used with PLCs, Das Loggers or multi-point input control devices.

Technical Data of SANGI Signal/RTD Transmitter Model RT-500~500C PT100

• Input RTD (model RT-50), thermocouple (model TT-50)
• Output 4~20 mA (two-wire connection)
• Fault indication shows 28/3.8 mA when the sensor is disconnected/open circuit or out of input range
• Load resistance ≤(Vs-7.5)/0.02A]Ω
• Load stability ±0.01%FS/100Ω
• Linearity error <+0.2%FS
• Voltage change impact < 0.005%FS/VDC
• Temperature coefficient < ± 0.01%FS / °C
• Calibration temperature 23°C±5°C
• Operating environment Temperature : 0~70°C / Humidity : 10-90%RH
• Maximum distance 1000 m (wire size 1x1.5 mm)
• Power supply 7.5~36V DC
