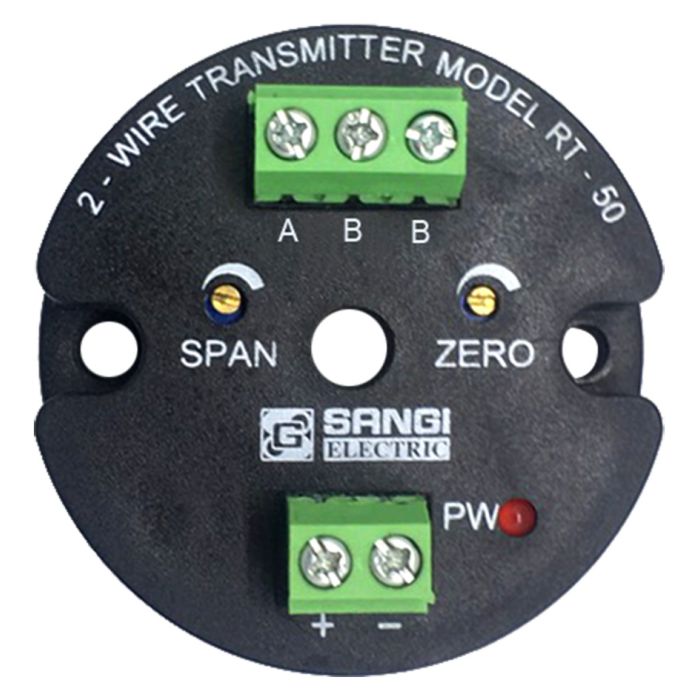

SANGI RTD Transmitter Model RT-50 0~150C PT-100

Details of SANGI Signal Converter/RTD Transmitter Model RT-50 0~150C PT-100

SANGI Signal Converter/RTD Transmitter Model RT-50, 0~150°C PT-100 is a signal converter with two input types.

• RT-50 accepts RTD (PT-100) input
• TT-50 accepts thermocouple (TC) Type K, J input

This unit can be installed inside the sensor housing due to its standard DIN A size, providing high accuracy for use even over long distances between measurement points and controllers.

SANGI Signal Converter/RTD Transmitter Model RT-50, 0~150°C PT-100 is cost-effective compared to using compensation lead wire for long-distance wiring between sensors and controllers. It is suitable for use where the sensor and control cabinet are far apart, as well as when used with PLCs, Data Loggers or multi-point input control devices.

Technical Specifications of SANGI Signal Converter/RTD Transmitter Model RT-50 0~150C PT-100

• Input: RTD (Model RT-50), Thermocouple (Model TT-50)
• Output: 4~20 mA (two-wire connection)
• Fault indication: Displays 28/3.8 mA when the sensor is open circuit, shorted or out of input range
• Load resistance ≤(Vs-7.5)/0.02A]Ω
• Load stability ±0.01%FS/100Ω
• Linearity error <+0.2%FS
• Voltage change effect < 0.005%FS/VDC
• Temperature coefficient ± 0.01%FS / °C
• Calibration temperature 23°C±5°C
• Operating environment Temperature : 0~70°C / Humidity : 10-90%RH
• Maximum distance 1000 m (wire size 1x1.5 mm)
• Power supply 7.5~36V DC
