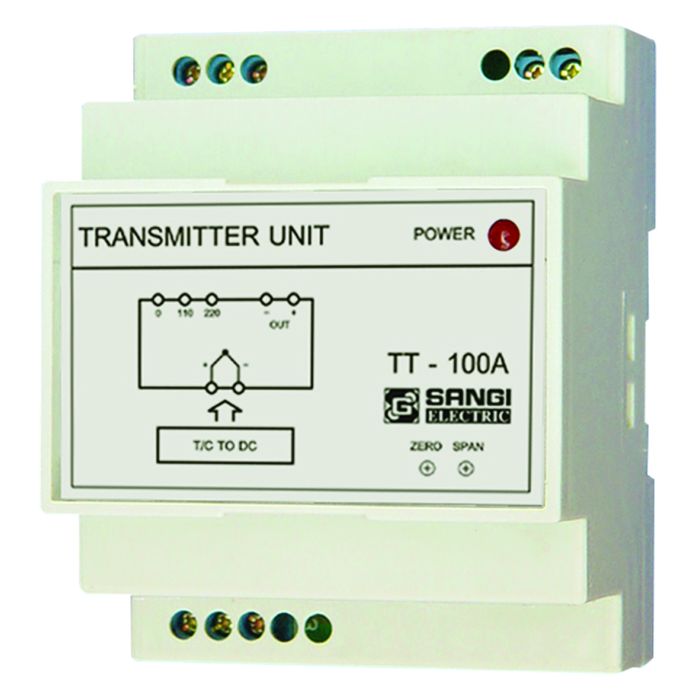

SANGI Thermocouple Transmitter Model TT-100A

Details of SANGI Thermocouple Transmitter Model TT-100A

The SANGI Thermocouple Transmitter model TT-100A is a device that converts thermocouple signals into DC electrical signals. It can be installed on DIN rails or mounted on walls.

• Input ranges are available from 0-100°C to 0-1200°C
• Output ranges include several options from 0-0.5V to 2-10V DC or 0~1mA to 4~20mA DC

The device is easy and convenient to use, with jumper and dip switch options for selecting the desired range.

Technical Data of SANGI Thermocouple Transmitter Model TT-100A

• Input range: Type K thermocouple, 11 ranges, maximum input voltage 80 mVDC
• Output range: 10 DCV ranges, 9 DCA ranges
• Output accuracy: 0.1% FS (23土5°C)
• Output impedance: 100Ω for DCV range, 150Ω for DCA range
• Input/output isolation: 1.6kV DC
• Operating environment: 0~55°C, 20~80%RH
• Installation: On a DIN rail (35 mm) or wall-mounted using brackets (included)
• Power supply: 110V, 220VAC ±10% (50/60Hz)
• Dimensions (WxHxD): 70x90x65 mm
