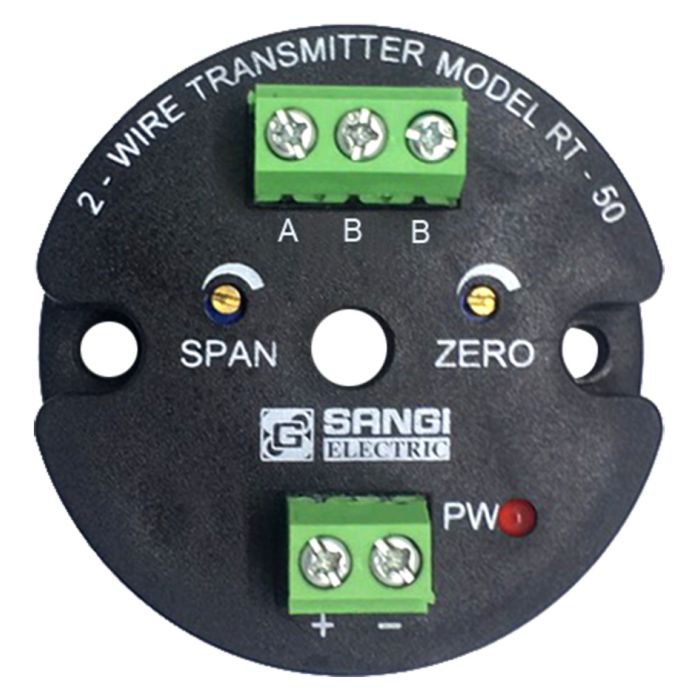

SANGI RTD Transmitter Model RT-50 0~200C PT-100

Details of SANGI Signal Converter/RTD Transmitter Model RT-50 0~200C PT-100

SANGI Signal Converter/RTD Transmitter Model RT-50 0~200C PT-100 is a signal converter with two types of input, supporting temperature measurement from 0 to 200°C.

• Model RT-50 accepts RTD (PT-100) input
• Model TT-50 accepts thermocouple (TC) Type K, J input

This unit can be installed inside the sensor housing due to its standard DIN A size, providing high accuracy even when long-distance wiring is required between the measurement point and controller.

SANGI Signal Converter/RTD Transmitter Model RT-50 0~200C PT-100 offers cost savings compared to using compensation lead wire for long-distance wiring between sensors and controllers. It is suitable for use where sensors and control cabinets are far apart, as well as when used with PLCs, Das Loggers or multi-point input control devices.

Technical Data of SANGI Signal Converter/RTD Transmitter Model RT-50 0~200C PT-100

• Input: RTD (Model RT-50), Thermocouple (Model TT-50)
• Output: 4~20 mA (two-wire connection)
• Fault indication: Displays 28/3.8 mA when sensor is open circuit or shorted, or outside input range
• Load resistance ≤(Vs-7.5)/0.02A]Ω
• Load stability ±0.01%FS/100Ω
• Linearity error <+0.2%FS
• Voltage change effect < 0.005%FS/VDC
• Temperature coefficient ±0.01%FS / °C
• Calibration temperature 23°C±5°C
• Operating environment Temperature: 0~70°C / Humidity: 10-90%RH
• Maximum distance 1000 m (wire size 1x1.5 mm)
• Power supply 7.5~36V DC
