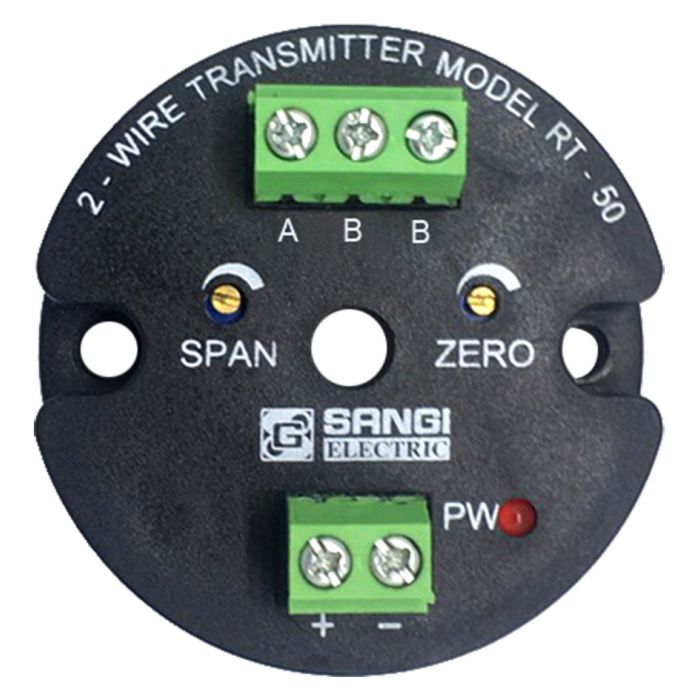

SANGI RTD Transmitter Model RT-50 0~300C PT-100

Details of SANGI Signal/RTD Transmitter Model RT-50 0~300C PT-100

SANGI Signal/RTD Transmitter Model RT-50 0~300C PT-100 is a signal transmitter with two types of inputs, supporting usage in temperatures ranging from 0 to 300 degrees Celsius.

• RT-50 accepts RTD (PT-100) input
• TT-50 accepts thermocouple (TC) Type K, J input

This unit can be installed inside the sensor housing due to its standard DIN A size, providing high accuracy for use even over long distances between measurement points and controllers.

SANGI Signal/RTD Transmitter Model RT-50 0~300C PT-100 is cost-effective compared to using compensation lead wire when connecting sensors with control units over long distances. It is suitable for use where the sensor and control cabinet are far apart, as well as in conjunction with PLC, Das Logger or multi-point input control devices.

Technical Data of SANGI Signal/RTD Transmitter Model RT-50 0~300C PT-100

• Input: RTD (Model RT-50), Thermocouple (Model TT-50)
• Output: 4~20 mA (two-wire connection)
• Fault indication: Displays 28/3.8 mA when the sensor is disconnected/open circuit or outside input range
• Load resistance ≤(Vs-7.5)/0.02A]Ω
• Load stability ±0.01%FS/100Ω
• Linearity error <+0.2%FS
• Voltage change impact < 0.005%FS/VDC
• Temperature coefficient ± 0.01%FS / °C
• Calibration temperature 23°C±5°C
• Operating environment temperature: 0~70°C / humidity: 10-90%RH
• Maximum distance 1000 m (wire size 1x1.5 mm)
• Power supply 7.5~36V DC
