RUP500 \ efector 400 \ Encoder \ INCREMENTAL ENCODER PERFORMANCE LINE \ PL

Be the first to review this product
Special Price THB 11,775.00 Regular Price THB 15,700.00
In stock
SKU
024664
In stock: 16 pcs

Delivery within: 03/09/2569

🚚 Free shipping on orders over ฿5,000! (normally ฿100)

Add to Wish List Add to Compare

ifm electronic, efector, Process sensors for manufacturing processes, Process sensors, Flow measurement sensors, Flow control sensors, Liquid flow sensors, Gas flow sensors, Flow meters, Flow switches, Flow sensors, Flow switches, Flow sensors, SCMA, Siemens, Sick, Balluff, P&F, Turck, Pepperl+Fuchs, Keyence

*Price does not include VAT

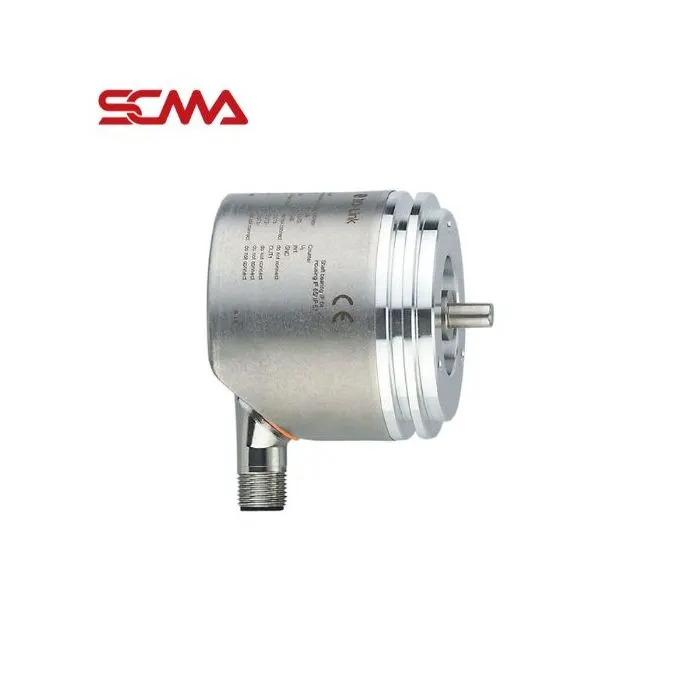

main product photo

Details of RUP500 \ efector 400 \ Encoder (Rotation Sensor) \INCREMENTAL ENCODER PERFORMANCE LINE \ PL

RUP500 \ efector 400 \ Encoder (Rotation Sensor) \INCREMENTAL ENCODER PERFORMANCE LINE \ PL An encoder from ifm that can adjust the Pulse count to 1~10000 Pulses in a single unit, reducing inventory management burdens. With IO-Link system, setting up and configuring usage becomes much easier. It is suitable for use in manufacturing processes to specify the position of moving sets on the robotic arms of automatic assembly systems.

  • Available in sizes 6 mm, 10 mm, and shaft-mounted versions with diameters of 6 mm, 12 mm.
  • Includes both cable-integrated and M12 connector types.
  • Operating voltage 4.75...30 VDC (HTL, TTL)
  • Resolution 1~10,000 Pulses
  • Dimensions 58.6x64 mm.
  • Protection standard IP65, IP67 (Housing) /
  • Protection standard IP64 (Shaft)

Technical Data RUP500 \ efector 400 \ Encoder (Rotation Sensor) \INCREMENTAL ENCODER PERFORMANCE LINE \ PL

  • Resolution 1...10000; (parameterisable; Factory setting: 1024) resolution
  • Communication interface IO-Link
  • Shaft design solid shaft
  • Shaft diameter[mm] 6
  • Function principle incremental
  • Detection system magnetic
  • Application encoder; Speed monitor; counter
  • Operating voltage[V] 4.75...30 DC
  • Current consumption[mA] < 350
  • Protection class III
  • Reverse polarity protection yes
  • Max. revolution electrical[U/min] 12000
  • Weight[g] 437
  • Dimensions[mm] Ø 58 / L = 64
  • Materials flange: aluminium; housing: stainless steel; display window: PEI
  • Max. revolution, mechanical[U/min] 12000
  • Max. starting torque[Nm] 1
  • Reference temperature torque[°C] 20
  • Shaft design solid shaft
  • Shaft diameter[mm] 6
  • Shaft material stainless steel
  • Max. shaft load axial (at the shaft end)[N] 40
  • Max. shaft load radial (at the shaft end)[N] 60
  • Fixing flange synchro-flange

    •
