RB3500 \ efector 400 \ Encoder \ INCREMENTAL ENCODER BASIC LINE \ PL

Be the first to review this product
Special Price THB 8,775.00 Regular Price THB 11,700.00
In stock
SKU
024655
In stock: 13 pcs

Delivery within: 03/09/2569

🚚 Free shipping on orders over ฿5,000! (normally ฿100)

Add to Wish List Add to Compare

ifm electronic, efector, Process sensors for manufacturing processes, Process sensors, Flow measurement sensors, Flow control sensors, Liquid flow sensors, Gas flow sensors, Flow meters, Flow switches, Flow sensors, Flow switches, Flow sensors, SCMA, Siemens, Sick, Balluff, P&F, Turck, Pepperl+Fuchs, Keyence

*Price does not include VAT

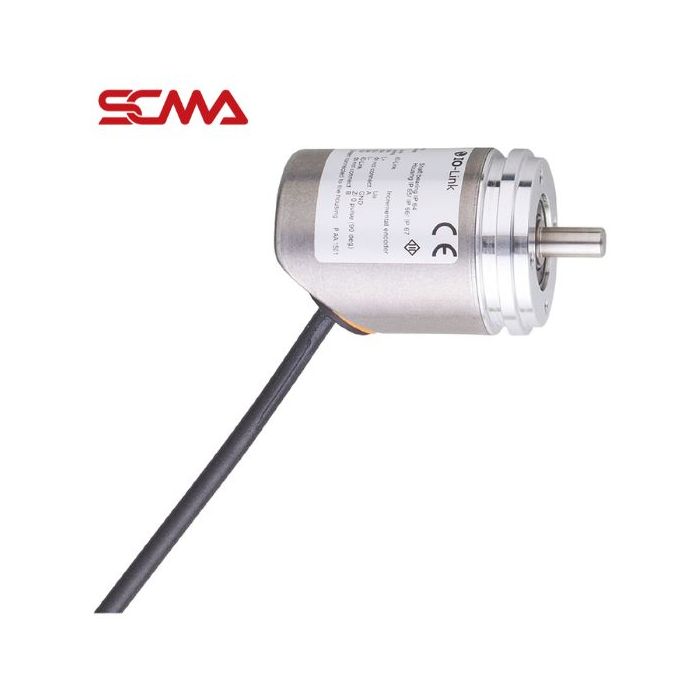

main product photo

Details of RB3500 \ efector 400 \ Encoder (Rotation Detection Sensor) \INCREMENTAL ENCODER BASIC LINE \ PL

RB3500 \ efector 400 \ Encoder (Rotation Detection Sensor) \INCREMENTAL ENCODER BASIC LINE \ PL An encoder from ifm that can adjust the Pulse count to 1~10000 Pulses in a single unit, reducing inventory management burdens. With IO-Link system, setting up and configuring usage becomes much easier. It can be applied in manufacturing processes to specify the position of moving sets on the robotic arms of automated assembly systems.

  • Available in sizes 6 mm, 10 mm, and shaft-mounted versions with sizes 6 mm, 12 mm.
  • Includes both cable-integrated and M12 connector types.
  • Operating voltage 4.75...30 VDC (HTL, TTL)
  • Resolution 1~10,000 Pulses
  • Dimensions 36.5x65 mm.
  • Protection class IP67 (Housing)
  • Protection class IP64 (Shaft)

Technical Data RB3500 \ efector 400 \ Encoder (Rotation Detection Sensor) \INCREMENTAL ENCODER BASIC LINE \ PL

  • Resolution 1...10000; (parameterisable; Factory setting: 1024)
  • Communication interface IO-Link
  • Shaft design solid shaft
  • Shaft diameter[mm] 6
  • Function principle incremental
  • Detection system magnetic
  • Operating voltage[V] 4.75...30 DC
  • Current consumption[mA] < 150
  • Protection class III
  • Reverse polarity protection yes
  • Power-on delay time[s] 0.5
  • Max. revolution electrical[U/min] 12000
  • Weight[g] 293
  • Dimensions[mm] Ø 36.5 / L = 65
  • Materials flange: aluminum; housing: stainless steel (444/1.4521); cable plug: PA
  • Max. revolution, mechanical[U/min] 12000
  • Max. starting torque[Nm] 1
  • Reference temperature torque[°C] 20
  • Shaft design solid shaft
  • Shaft diameter[mm] 6
  • Shaft material stainless steel
  • Max. shaft load axial (at the shaft end)[N] 40
  • Max. shaft load radial (at the shaft end)[N] 60
  • Fixing flange Ø 36.5 mm

    •
