PV7004 efector 500 Pressure sensor PV-010-REG14-UFRVG/US/ DE

Be the first to review this product
Special Price THB 6,900.00 Regular Price THB 9,200.00
In stock
SKU
029596
In stock: 3 pcs

Delivery within: 03/09/2569

🚚 Free shipping on orders over ฿5,000! (normally ฿100)

Add to Wish List Add to Compare

ifm electronic, efector, position sensors, magnetic sensors, magnetic object detection sensor, object detection, SCMA, Pepperl+Fuchs, Keyence

*Price does not include VAT

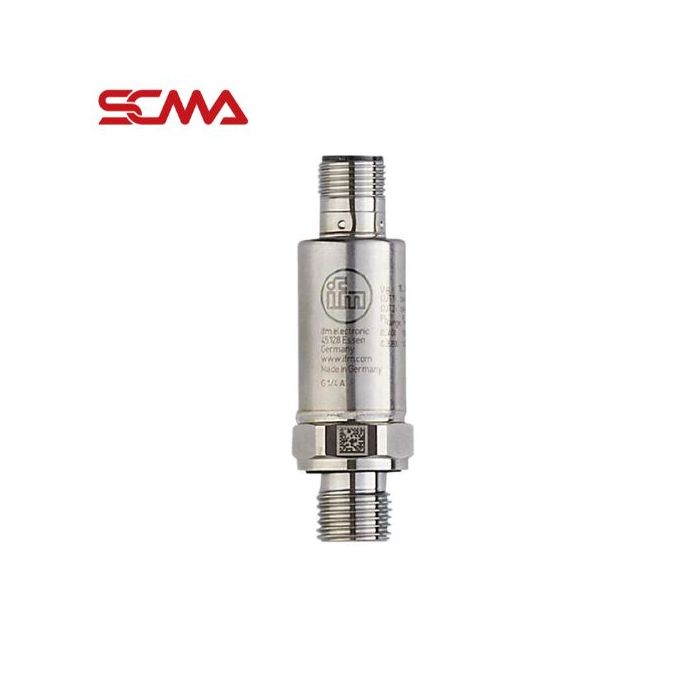

main product photo

Details of PV7004 \ efector 500 \ Pressure sensor (Pressure Sensor) \PV-010-REG14-UFRVG/US/ / \ DE

PV7004 \ efector 500 \ Pressure sensor (Pressure Sensor) \PV-010-REG14-UFRVG/US/ / \ DE is a compact unit from ifm designed for limited space applications, with high overpressure and vacuum resistance. Made of stainless steel, it is robust and durable against impact and vibration. It supports operation in environmental temperatures ranging from -40 to 90°C, featuring dust and water protection at IP67 and IP69K levels.

Tech Data PV7004 \ efector 500 \ Pressure sensor (Pressure Sensor) \PV-010-REG14-UFRVG/US/ / \ DE

  • Number of inputs and outputs Number of digital outputs: 2
  • Measuring range -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
  • Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
  • Measuring element metallic thin film cell
  • Application for industrial applications
  • Media liquids and gases
  • Medium temperature[°C] -40...90
  • Min. bursting pressure 300 bar 4350 psi 30 MPa
  • Pressure rating 25 bar 360 psi 2.5 MPa
  • Note on pressure rating static
  • Vacuum resistance -1000 mbar -0.1 MPa
  • Type of pressure relative pressure; vacuum
  • Weight[g] 63.5
  • Housing cylindrical
  • Dimensions[mm] Ø 19 / L = 66
  • Materials stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI
  • Materials (wetted parts) stainless steel (303/1.4305); stainless steel (630/1.4542/17-4 PH)
  • Min. pressure cycles 60 million; (at 1.2 times nominal pressure)
  • Tightening torque[Nm] 25...35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
  • Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
  • Process connection sealing FKM (DIN EN ISO 1179-2)
  • Restrictor element integrated yes
