PV7702 efector 500 Pressure sensor PV-100MSER14-UFRVG/US/ DE

Details of PV7702 \ efector 500 \ Pressure sensor (pressure sensor) \PV-100MSER14-UFRVG/US/ / \ DE

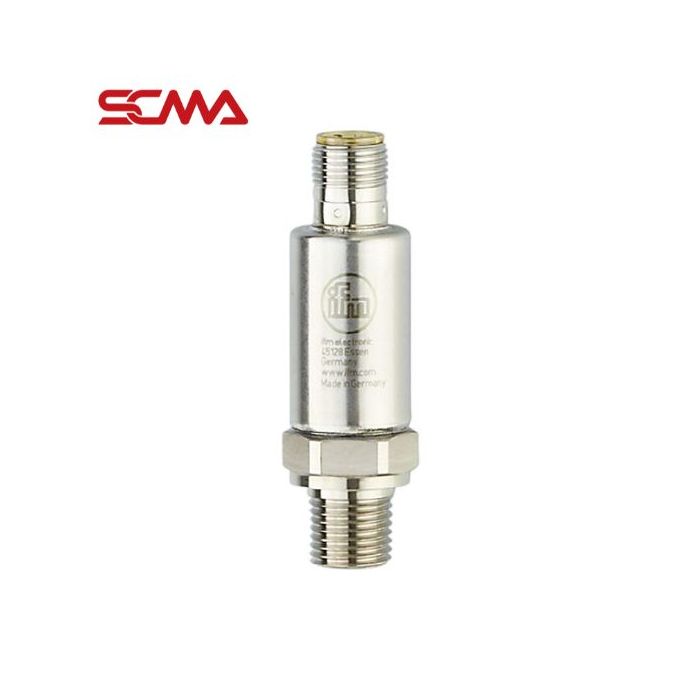

PV7702 \ efector 500 \ Pressure sensor (pressure sensor) \PV-100MSER14-UFRVG/US/ / \ DE is a compact unit from ifm designed for limited space applications, with high overpressure and vacuum resistance. Made of stainless steel, it offers robustness against impact and vibration, suitable for environmental temperatures ranging from -40 to 90°C, and has dust and water protection at IP67 and IP69K levels.

Technical data PV7702 \ efector 500 \ Pressure sensor (pressure sensor) \PV-100MSER14-UFRVG/US/ / \ DE

• Number of inputs and outputs Number of digital outputs: 2
• Measuring range[MPa] 0...10
• Process connection threaded connection R 1/4 external thread internal thread:M5
• Measuring element metallic thin film cell
• Application for industrial applications
• Media liquids and gases
• Medium temperature[°C] -40...90
• Min. bursting pressure[MPa] 100
• Pressure rating[MPa] 25
• Note on pressure rating static
• Vacuum resistance -1000 mbar -0.1 MPa
• Type of pressure relative pressure
• Weight[g] 65
• Housing cylindrical
• Dimensions[mm] Ø 19 / L = 67
• Materials stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PEI
• Materials (wetted parts) stainless steel (303/1.4305); stainless steel (630/1.4542/17-4 PH)
• Minimum pressure cycles 60 million; (at 1.2 times nominal pressure)
• Tightening torque[Nm] 50; (recommended tightening torque; depends on lubrication, seal and pressure rating)
• Process connection threaded connection R 1/4 external thread internal thread:M5
• Restrictor element integrated yes
