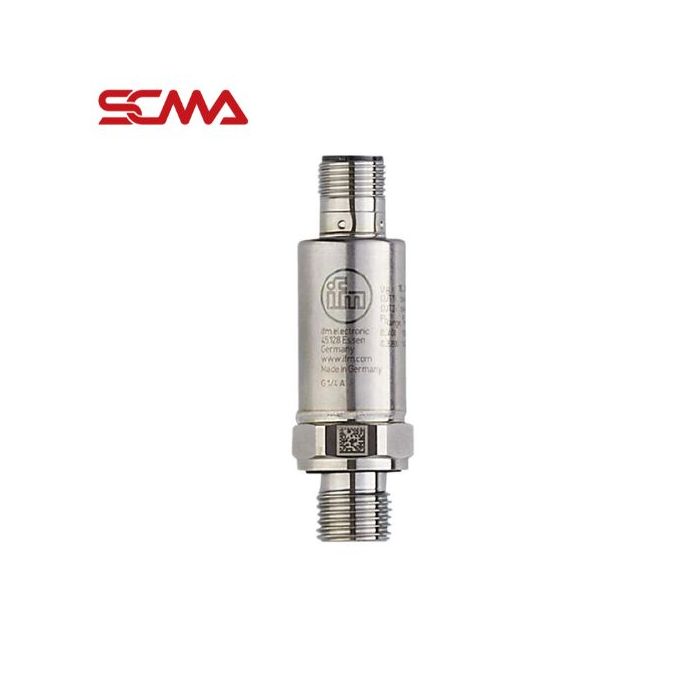

PV7003 efector 500 Pressure sensor PV-025-SEG14-UFRVG/US/ DE
Special Price THB 6,900.00 Regular Price THB 9,200.00
Out of stock
SKU
029804
Out of stock
Delivery date: 4 ก.ย. 2569
ifm electronic, efector, position sensors, magnetic sensors, magnetic object detection sensor, object detection, SCMA, Pepperl+Fuchs, Keyence
*Price does not include VAT
Details of PV7003 \ efector 500 \ Pressure sensor (Pressure Sensor) \PV-025-SEG14-UFRVG/US/ / \ DE
PV7003 \ efector 500 \ Pressure sensor (Pressure Sensor) \PV-025-SEG14-UFRVG/US/ / \ DE Compact sensor from ifm for use in limited spaces, with high overpressure and vacuum resistance. Made of stainless steel, it is robust and resistant to impact and vibration. It supports operation in environmental temperatures ranging from -40 to 90 °C, with dust and water protection up to IP67 and IP69K.
Technical Data PV7003 \ efector 500 \ Pressure sensor (Pressure Sensor) \PV-025-SEG14-UFRVG/US/ / \ DE
- Number of inputs and outputs Number of digital outputs: 2
- Measuring range -1...25 bar -14.6...362.6 psi -0.1...2.5 MPa
- Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
- Measuring element metallic thin film cell
- Application for industrial applications
- Media liquids and gases
- Medium temperature[°C] -40...90
- Min. bursting pressure 600 bar 8700 psi 60 MPa
- Pressure rating 65 bar 940 psi 6.5 MPa
- Note on pressure rating static
- Vacuum resistance -1000 mbar -0.1 MPa
- Type of pressure relative pressure; vacuum
- Weight[g] 63
- Housing cylindrical
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 6,900.00 |
