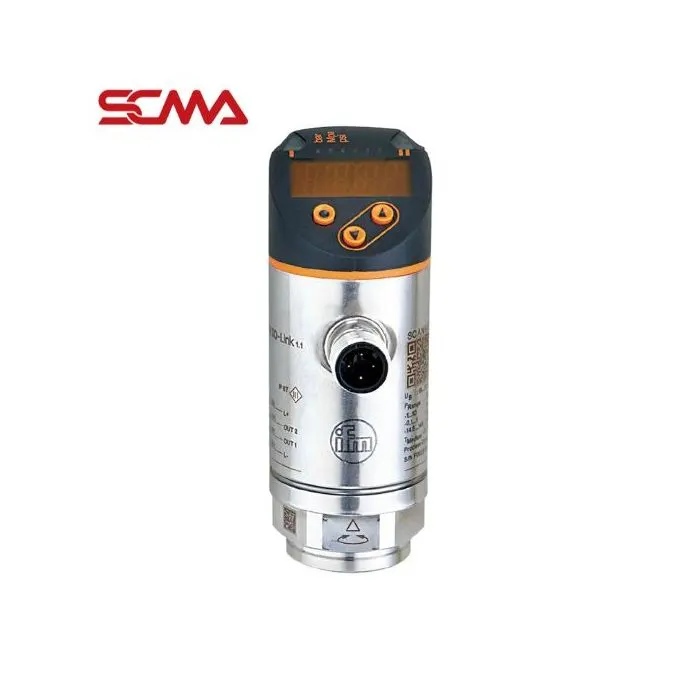

PN2071 efector 500 Pressure sensor PN-250-SER14-MFRKG/US/ V DE

Details of PN2071 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-250-SER14-MFRKG/US/ /V \ DE

PN2071 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-250-SER14-MFRKG/US/ /V \ DE High-pressure pressure control switch with LED display

• With IO-Link system, the sensor can be set to NO/NC or PNP/NPN as required and historical data can be reviewed.
• Threaded mounting size G1/4 male and G1/4 female
• Variety of functions covering all types of pressure measurement applications
• The display shows two colors
• Measures and controls up to 600 bar maximum pressure
• Operating voltage: 18...30 VDC
• Dimensions: 34x90.7x49.4 mm.
• Dustproof and waterproof standards IP65, IP67

The PN2071 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-250-SER14-MFRKG/US/ /V \ DE is used to measure oil pressure in various machines in factories, such as measuring hydraulic system oil pressure in workpiece pumps.

Technical Data PN2071 \ efector 500 \ Pressure sensor (Pressure Sensor) \PN-250-SER14-MFRKG/US/ /V \ DE

• Number of inputs and outputs    Number of digital outputs: 2; Number of analogue outputs: 1
• Measuring range : 0...250 bar    0...3625 psi    0...25 MPa
• Process connection : threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)
• Special feature : Gold-plated contacts
• Measuring element : metallic thin film cell
• Application : for industrial applications
• Media : liquids and gases
• Medium temperature[°C] : -25...80
• Min. bursting pressure : 1200 bar    17400 psi    120 MPa
• Pressure rating : 500 bar    7250 psi    50 MPa
• Vacuum resistance : -1000 mbar    -0.1 MPa
• Type of pressure : relative pressure
• Operating voltage[V] : 18...30 DC; (to SELV/PELV)
• Current consumption[mA] : < 35
• Min. insulation resistance[MΩ] : 100; (500 V DC)
• Protection class : III
• Reverse polarity protection : yes
• Power-on delay time[s] : 0.3
• Integrated watchdog : yes
