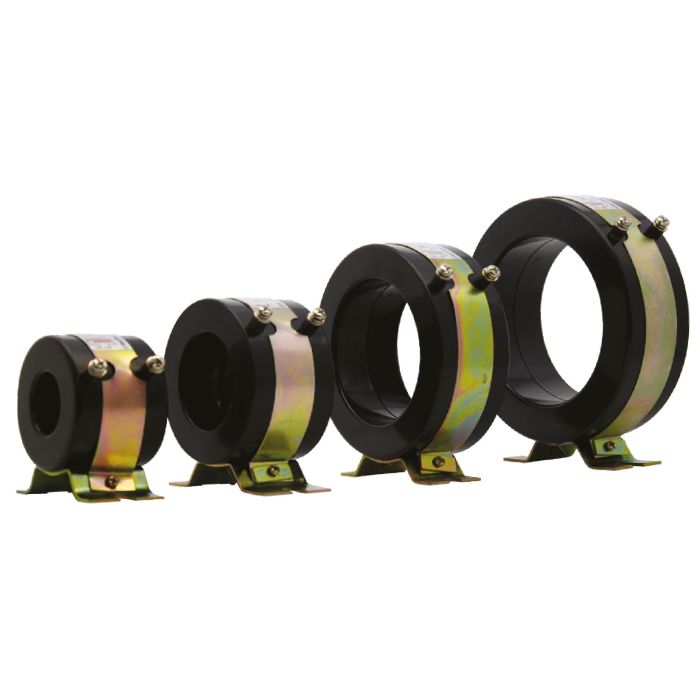

KCT-90R, 1500/5A KEPLER Current Transformer
Special Price THB 480.00 Regular Price THB 600.00
In stock
SKU
027258
In stock: 15 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
Current Transformer, Split Core Current Transformer, Clamp-On Current Transformer, External Mount Current Transformer, Outdoor Current Transformer, CT
*Price does not include VAT
Features of KEPLER Current Transformer Clamp Model KCT-90R, 1500/5A
- It is a circular clamp-on current transformer that offers cost-effective pricing.
- Current rating 1500/5A
- High accuracy class of 0.5
- Can be clamped onto wires or Bus Bars in a wide range of sizes.
- Suitable for use with Power meter, kWhr meter
- and Amp meters from all brands.
- Compliant with standards IEC60044-1, VDE0414-44-1, DIN57414, BS3938, BS7626, EN60044-1, GB1208-2009
Technical Data KEPLER Current Transformer Clamp Model KCT-90R, 1500/5A
- Model KCT-90R
- Current rating 1500/5A
- Burden (VA) 10
- Class 0.5
- Voltage rating 720VAC
- Highest test voltage 3kVAC (1 minute)
- Frequency 50 / 60Hz
- Dynamic current range 60 IN
- Overload current 1.2 In (continuous)
- Operating temperature -25ºC~+50ºC
- Case Non-flammable, polycarbonate self-extinguishing ABS/PC
- Safety factor FS<5
- Compliant with standards IEC 60044-1, VDE 0414-44-1, DIN 57414, BS3938, BS7626, EN 60044-1, GB 1208-2009
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 480.00 |
