KCT-110R, 2500/5A KEPLER Current Transformer
Special Price THB 720.00 Regular Price THB 900.00
In stock
SKU
027260
In stock: 3 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
Current Transformer, Split Core Current Transformer, Clamp-On Current Transformer, External Mount Current Transformer, Outdoor Current Transformer, CT
*Price does not include VAT

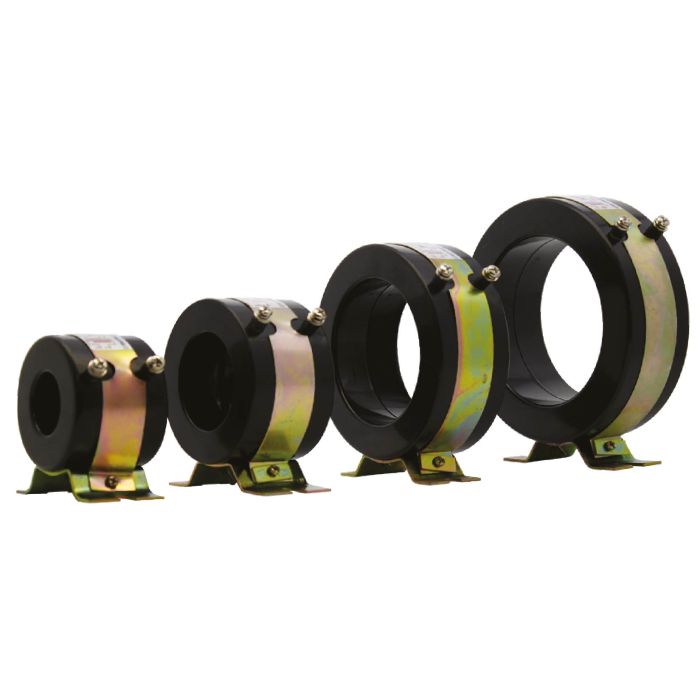

Features of KEPLER Current Transformer Plug-In Type Model KCT-110R, 2500/5A
- It is a circular plug-in type current transformer with an economical price.
- Current rating 2500/5A
- High accuracy class 0.5
- Can be clamped onto wires or Bus Bar of all sizes.
- Suitable for use with Power meter, kWhr meter
- and Amp meters from any brand.
- Complies with IEC60044-1, VDE0414-44-1, DIN57414, BS3938, BS7626, EN60044-1, GB1208-2009 standards.
Technical Data KEPLER Current Transformer Plug-In Type Model KCT-110R, 2500/5A
- Model KCT-110R
- Current rating 2500/5A
- Burden (VA) 15
- Class 0.5
- Voltage rating 720VAC
- Highest test voltage 3kVAC (1 minute)
- Frequency 50 / 60Hz
- Dynamic current range 60 IN
- Overload current 1.2 In (continuous)
- Operating temperature -25ºC~+50ºC
- Case Non-flammable, polycarbonate self-extinguishing ABS/PC
- Safety factor FS<5
- Complies with IEC 60044-1, VDE 0414-44-1, DIN 57414, BS3938, BS7626, EN 60044-1, GB 1208-2009 standards.
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 720.00 |
