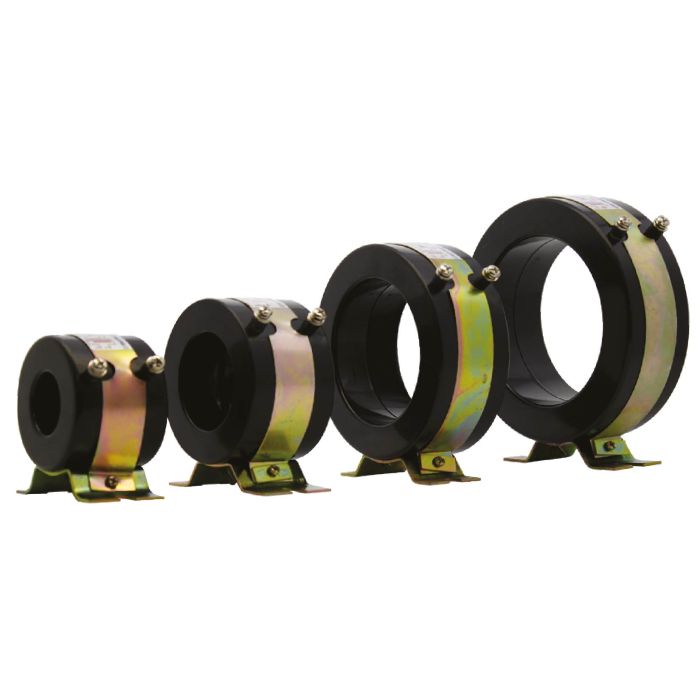

KCT-110R, 2000/5A KEPLER Current Transformer

Features of KEPLER Current Transformer Clamp Model KCT-110R, 2000/5A

• It is a circular clamp-on current transformer that offers cost-effective pricing.
• Current rating 2000/5A
• High accuracy class of 0.5
• Can be clamped onto wires or Bus Bar for all sizes.
• Suitable for use with Power meter, kWhr meter,
• and Amp meters of any brand.
• Compliant with standards IEC60044-1, VDE0414-44-1, DIN57414, BS3938, BS7626, EN60044-1, GB1208-2009

Technical Data KEPLER Current Transformer Clamp Model KCT-110R, 2000/5A

• Model KCT-110R
• Current rating 2000/5A
• Burden (VA) 15
• Class 0.5
• Voltage rating 720VAC
• Maximum test voltage 3kVAC (1 minute)
• Frequency 50 / 60Hz
• Dynamic current range 60 IN
• Overload current 1.2 In (continuous)
• Operating temperature -25ºC~+50ºC
• Case Non-flammable, polycarbonate self-extinguishing ABS/PC
• Safety factor FS<5
• Compliance standards IEC 60044-1, VDE 0414-44-1, DIN 57414, BS3938, BS7626, EN 60044-1, GB 1208-2009
