KCT-90R, 1000/5A KEPLER Current Transformer
Special Price THB 400.00 Regular Price THB 500.00
In stock
SKU
027255
In stock: 15 pcs
Delivery within: 03/09/2569
🚚 Free shipping on orders over ฿5,000! (normally ฿100)
Current Transformer, Split Core Current Transformer, Clamp-On Current Transformer, External Mount Current Transformer, Outdoor Current Transformer, CT
*Price does not include VAT
Details of KEPLER Current Transformer Model KCT-90R, 1000/5A

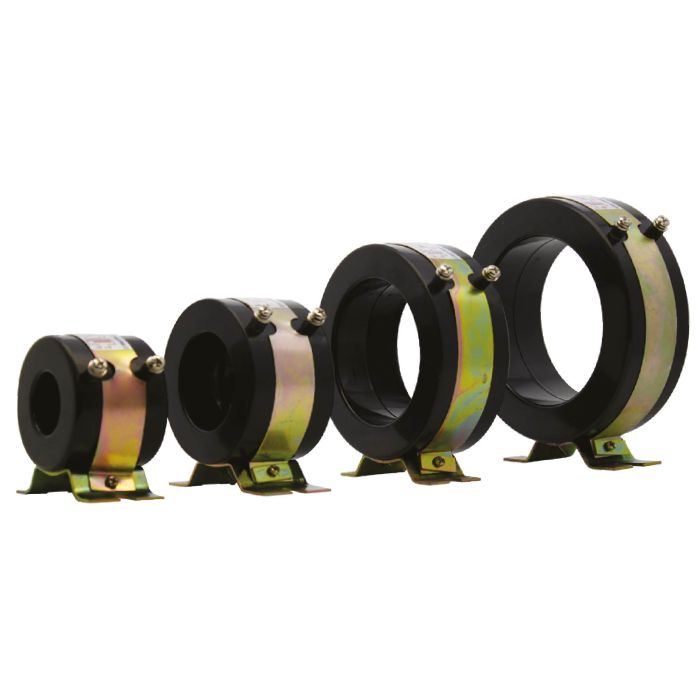

- A cost-effective circular clamp-on current transformer
- Available in a range of current ratings from 30/5A to 3000/5A depending on installation requirements
- High accuracy class 0.5 (except for model KCT-35R, 50/5A and KCT35-R, 60/5A which are Class 1.0)
- Fits around wires or Bus Bars of all sizes
- Suitable for use with power meters, kWhr meters, and amp meters from any brand
- Complies with IEC60044-1, VDE0414-44-1, DIN57414, BS3938, BS7626, EN60044-1, GB1208-2009 standards
Technical Data KEPLER Current Transformer Model KCT-90R, 1000/5A
- Current Rating : 1000/5A
- Burden (VA) : 10
- Class : 0.5
- Voltage Rating : 720VAC
- Highest Test Voltage : 3kVAC (for one minute)
- Frequency : 50 / 60Hz
- Dyn Current Rating : 60 IN
- Overload Current : 1.2 In (continuous)
- Operating Temperature Range : -25°C~+50°C
- Casing Material : Non-flammable, polycarbonate, self-extinguishing ABS/PC
- Safety Factor : FS<5
- Compliance Standards : IEC 60044-1, VDE 0414-44-1, DIN 57414, BS3938, BS7626, EN 60044-1, GB 1208-2009
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 400.00 |
