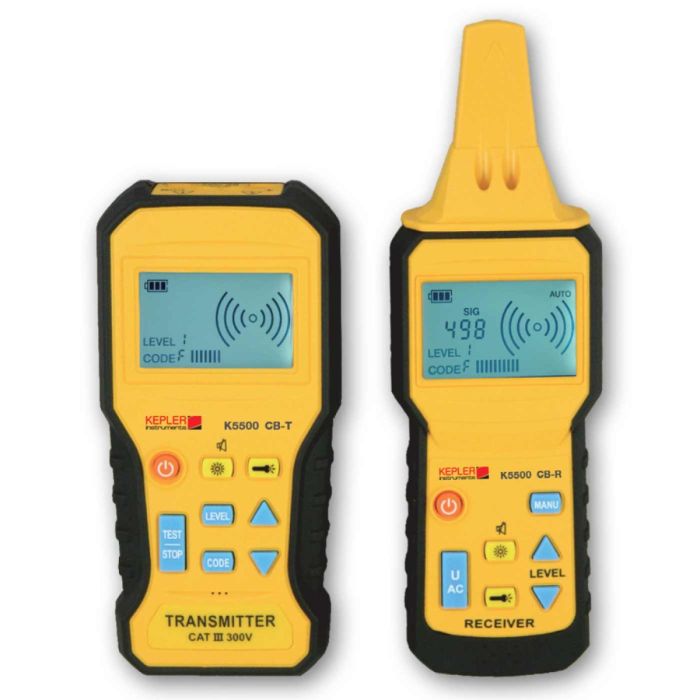

KEPLER Cable Locator K5500 CB

Details of KEPLER Cable Locator K5500 CB

Transmitter (K5500 CB-T)

• Suitable for locating and identifying individual cables and conductors
• Able to locate and identify energized and de-energized cables or wires
• Voltage measurement range for cable 12V-300V AC/DC (K5500 CB)
• Signal transmission frequency 125kHz
• Selectable signal transmission power level in three stages (1, 2, 3)
• Selectable signal code (includes F, E, H, D, L, C, O, A)
• Includes flashlight and screen illumination light
• Has a signal transmission power level indicator on the LCD display
• Automatic shutdown

Receiver (K5500 CB-R)

• Able to locate and identify energized and de-energized cables or wires
• Selectable detection mode for signal strength, code, and measurement values either automatically or manually by the user
• Detection depth range less than 50 centimeters
• Includes UAC mode for detecting AC voltage
• Includes flashlight and screen illumination light
• Has an AC voltage warning symbol when there is AC voltage in the line
• Has a level indicator on the LCD display for signal values and AC voltage values in UAC mode
• Automatic shutdown
