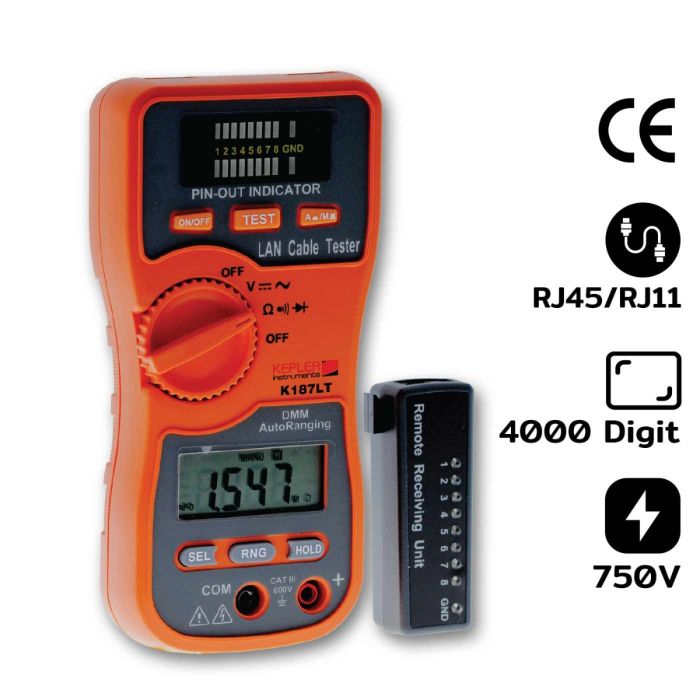

KEPLER K187LT LAN Cable Tester & Digital Multimeter

Details of KEPLER LAN Cable Tester & Digital Multimeters (LAN Cable Tester & Digital Multimeters) K187LT

• Designed specifically for RJ45/RJ11 ports, can select Base-T 10/100 and Token Ring cable types.
• Tests LAN cables to check continuity and circuit connections.
• Remote Receiving Unit allows remote testing of cables in hard-to-reach places such as ceilings, walls or telephone panels.
• Includes both automatic and manual scanning functions.
• Able to test earth wiring systems.
• LED display indicates cable status.
• LCD display with 4000 digits.
• Automatic range switching.
• Voltage AC/DC measurement, resistance and continuity testing functions.

Tech Specifications KEPLER LAN Cable Tester & Digital Multimeters (LAN Cable Tester & Digital Multimeters) K187LT

• AC Voltage : 400mV / 4V / 40V / 400V / 750V : ±(1.0%rdg+5dgt)
• DC Voltage : 400mV / 4V / 40V / 400V / 1000V : ±(0.5%rdg+3dgt)
• Resistance :
  • 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ : ±(1.2%rdg+3dgt)
  • 40MΩ : ±(2.0%rdg+4dgt)
• Continuity Test : 400Ω (Audible threshold Less than 25Ω)
• Operating temperature & humidity : 0°C~40°C, 80% Max.
• Dimensions :
  • Master unit : Approx. 283g
  • Remote receiving unit : 74(L) x 30 (W) x 25(D)mm
• Weight (battery included) :
  • Master unit : Approx. 283g
  • Remote receiving unit : Approx. 30g
• Power source :
  • LAN cable tester : 9V battery x 1
  • DMM : 1.5V(AAA) x 2
• Safety standard : EN 61010-1 CAT III 600V, EN 61326-1, EN 55011, EN 61000-4-2, EN 61000-4-3
