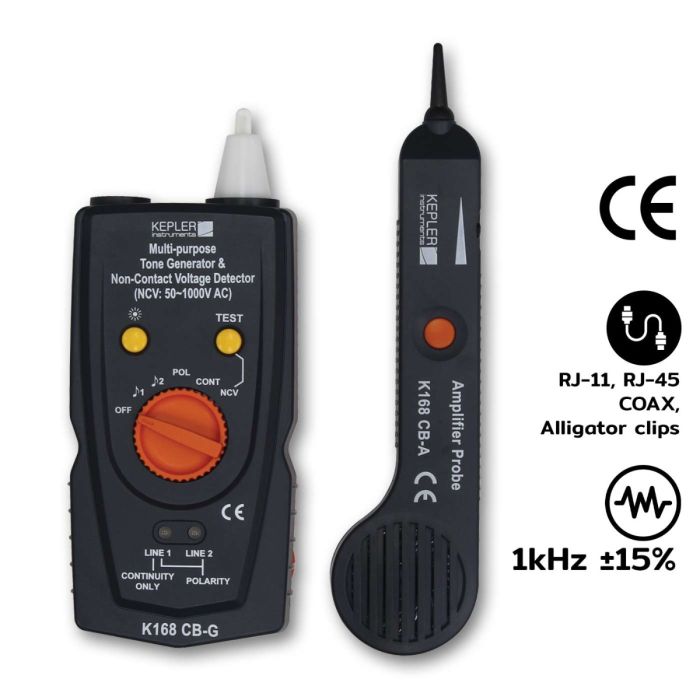

KEPLER K168 Cable Tracer (Tone Gen & Non-contact Voltage) CB

Details of KEPLER  Cable Tracer (Tone Gen & Non-contact Voltage) K168 CB

• Includes 4 test plugs to choose from: RJ-11, RJ-45, COAX, Alligator clips
• Features 2 tones for testing: Fast, Slow
• Can be used to check telephone line jacks
• Detects phone line status: idle, busy, incoming call
• Includes a Flashlight for illuminating test points
• The Amplifier Probe is designed to locate and identify multiple pairs of wires without damaging insulation
• Works with Tone Generator to identify cables
• Controls volume level to increase speed and adjust to the working environment
• Detects voltage using Non-contact Voltage function in range 50V~1000VAC
• An LED light will illuminate and an alarm sound will be emitted when there is voltage present

Technical Specifications KEPLER  Cable Tracer (Tone Gen & Non-contact Voltage) K168 CB

Multipurpose Tone Generator / Non-contact Voltage Detector

• Waveform : Square wave
• Frequency : 1kHz ±15%
• Over Voltage Protection : 80VDC
• Alternating Tone : Fast and Slow
• Connection : RJ-11, RJ-45, COAX, Alligator clip x 2
• Power Source : 9V battery
• Dimensions / Weight : 202(L) x 86(W) x 46(H)mm / Approx. 300g (battery included)

Amplifier Probe

• Frequency detection range : 1Hz~12kHz
• Receiver distance : <50cm
• Sensitivity control / Flashlight : OK
• Probe tip : Fixed
• Power Source : 9V battery
• Dimensions / Weight : 230(L) x 57(W) x 27(H)mm / Approx. 125g (battery included)
• Operating Temperature & Humidity : 0°C~40°C, 80% Max.
• Safety standard : EN 61010-1, EN 61326-1
