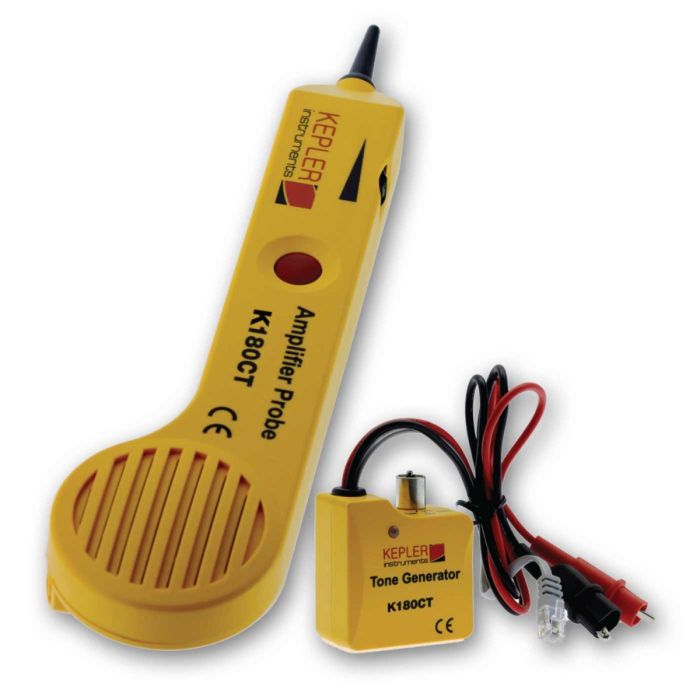

KEPLER Cable Tracer (Tone Gen) K180CT

Details of KEPLER Cable Tracer (Tone Gen) K180CT

• The Probe Amplifier is designed to locate and identify various wires or cables in large quantities without damaging the insulation.
• Works with the Tone Generator to pinpoint any wire.
• Can control sound levels for increased sensitivity and adjust according to working environment conditions.
• Features a headphone jack for noisy environments.
• Serves as a Tone Generator used to locate or identify wires, cables, or various conductors.
• Displays test results with 2-color LED indicators.
• Designed specifically for RJ11 ports and alligator clips.

Tech Specifications KEPLER Cable Tracer (Tone Gen) K180CT

Amplifier Probe

• Frequency : 1Hz~12kHz
• Receiver distance : < 50cm
• Sensitivity control : /
• Probe tip : Fixed
• Power source : 9V(6F22) x 1
• Dimensions : 230(L) x 56(W) x 27(D)mm
• Weight : Approx. 125g (battery included)

Tone Generator

• Wave form : Square Wave
• Frequency : 1kHz ±15%
• Over voltage Protection : 100VDC
• Single tone : /
• Alternating tone : Fast
• Connection : RJ11 connector, alligator clip x 2, RJ45 connector (optional)
• Power source : 9V(6F22) x 1
• Dimensions : 64(L) x 58(W) x 34(D)mm
• Weight (battery included) : Approx. 120g

General

• Operating temp & humidity : 0~40°C, 80% Max.
• Storage temp & humidity : -10~50°C, 80% Max.
• Safety standard : EN 61326-1, EN 55011, EN 6100-4-2, EN 6100-4-3
