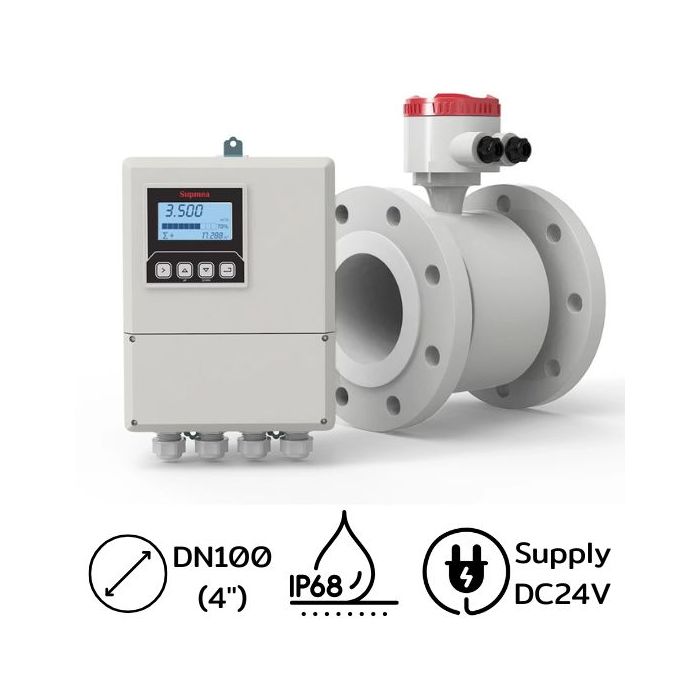

FMC240 DN100 Series Electromagnetic Flow Meter Remote Type

Key Features of FMC240 Electromagnetic Flow Meter Remote type DN100 Series (Magnetic Field Flow Meter)

• Accuracy: +0.5%(Flow speed > 0.5m/s)
• Theoretical value: Water: Min. 20pS/cm; Other liquid: Min. 5pS/cm
• Recommended value: >30S/cm
• Strong anti-interference ability, under normal grounding conditions, the flow value can be displayed stably
• With lightning protection capability, it can be used in lightning-prone areas

Technical Features of FMC240 Electromagnetic Flow Meter Remote type DN100 Series (Magnetic Field Flow Meter)

Product	Electronic water meter
Model	FMC240
Nominal diameter	DN15~DN1000
Nominal pressure	DN15 - DN250, PN ≤1.6MPa
	DN300 - DN1000, PN ≤1.0MPa

Accuracy Class 2(Please see datasheet for details) Repeatability 0.16% Liner material Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA Electrode material 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt Medium temperature range Neoprene: -10…+70℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+120℃ Power supply 220VAC, 24VDC Structure type Compact type, Remote type Ingress protection IP65, IP68 (remote type only) Product standard JB/T 9248-2015
