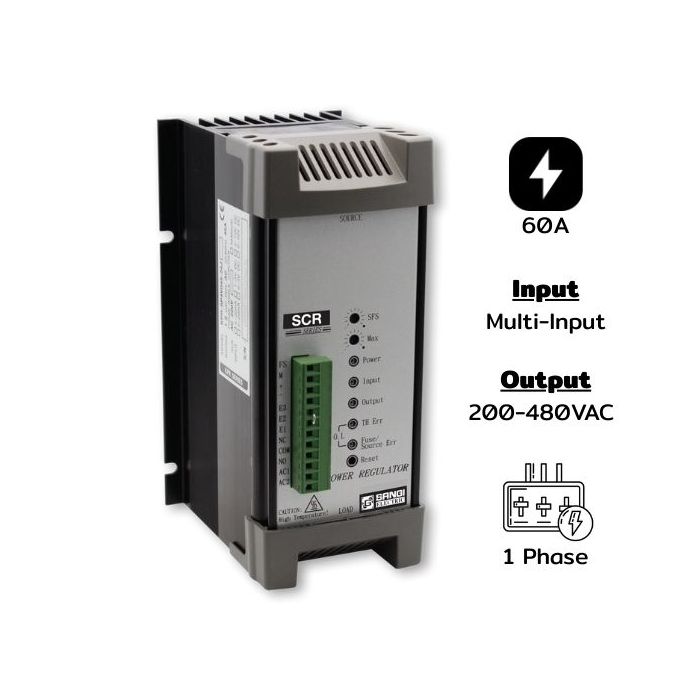

SCR-1ASP060 Single Phase 200-480VAC, 60A, Multi-input, Phase Angle

Details of SCR-1ASP060 Single Phases 200-480VAC, Current 60A, Multi-input, Phase Angle

SCR-1ASP060 Single Phases 200-480VAC, Current 60A, Multi-input, Phase Angle SCR Single Phase – Voltage Regulator for single phase using SCR SCMA is the distributor of Brands SANGI

General Description

SCR (Silicon Controlled Rectifier) is a semiconductor device used to control electrical power delivery, especially in AC (alternating current) systems by controlling “Phase Angle” which allows adjusting the voltage supplied to the load.

Working Principle

The SCR controls the conduction of current according to the "phase angle" of the AC signal, meaning setting the time when the SCR starts conducting in each half cycle of the sine wave (Sine Wave).

• When phase angle is small ➜ SCR starts conducting early ➜ Load gets higher voltage
• When phase angle is large ➜ SCR starts conducting late ➜ Load gets lower voltage

This system is called Phase Angle Control, providing continuous and smooth (Smooth Voltage Control).

Key Features

• Voltage range supported: 200 – 480 VAC
• Single phase electricity (Single Phase)
• Multi-input accepts various input signals such as 4-20mA, 0-10V, Potentiometer
• Phase Angle Control for precise voltage adjustment
• Continuous control Soft Start / Soft Stop
• Loading protection with Overvoltage, Overcurrent, Overtemperature protection systems
• Easy installation DIN rail or Panel mount

Applications

• Heater Control
  Used to control temperature in ovens, furnaces, resistive load heaters
• Lighting Control
  Dimming lights in lighting systems such as halogen lamps or studios
• Temperature Control System
  Works with PID or PLC controllers for constant heating
• General Industrial Systems: Dryers, plastic injection machines, steam systems, metal furnaces

Summary of Benefits of SCR Single Phase

• Precise voltage control
• Continuous power adjustment
• Diverse load support
• Long service life with minimal maintenance required
• Rapid response, easy to control

Tech Data SCR-1ASP060 Single Phases 200-480VAC, Current 60A, Multi-input, Phase Angle
