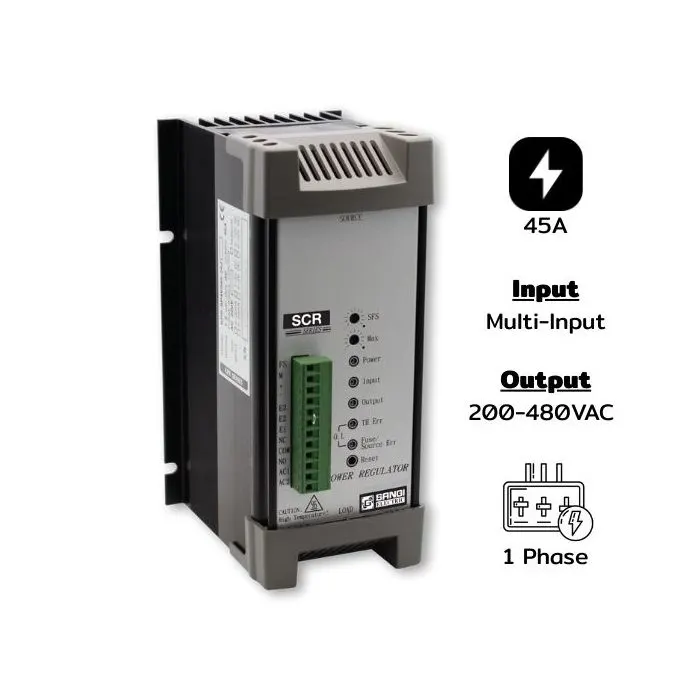

SCR-1ASP045 Single phases 200-480VAC, 45A, Multi-input, Phase angle

Details of SCR-1ASP045 Single phases 200-480VAC, current 45A, Multi-input, Phases angle

SCR-1ASP045 Single phases 200-480VAC, current 45A, Multi-input, Phases angle SCR Single Phase – Voltage Regulator for single phase using SCR SCMA is the distributor of Brands SANGI

General Description

SCR (Silicon Controlled Rectifier) is a semiconductor device used to control electrical power delivery, especially in AC (alternating current) systems by controlling “phase angle” (Phase Angle Control), allowing for adjustment of the voltage delivered to the load.

Working Principle

The SCR controls conduction according to the "phase angle" of the AC signal, which means setting the time at which the SCR starts conducting in each half cycle of the sine wave.

• When phase angle is small ➜ SCR starts conducting early ➜ Load receives higher voltage
• When phase angle is large ➜ SCR starts conducting late ➜ Load receives lower voltage

This system is called Phase Angle Control, providing continuous and smooth (Smooth Voltage Control) voltage adjustment.

Key Features

• Voltage range supported: 200 – 480 VAC
• Single phase electricity (Single Phase)
• Multi-input accepts various input signals such as 4-20mA, 0-10V, Potentiometer
• Phase Angle Control for precise voltage level adjustment
• Continuous control Soft Start / Soft Stop
• Loading protection with Overvoltage, Overcurrent, and Overtemperature protection systems
• Easy installation DIN rail or Panel mount

Applications

• Heater Control
  Used to control temperature in ovens, furnaces, resistive load heaters
• Lighting Control
  Dimming lights in lighting systems such as halogen lamps or studios
• Temperature Control System
  Works with PID or PLC controllers for constant heating
• General industrial applications: drying machines, plastic injection molding machines, steam systems, metal furnaces

Summary of Benefits of SCR Single Phase

• Precise voltage control
• Continuous power adjustment
• Diverse load support
• Long service life with minimal maintenance required
• Rapid response, easy to control

Tech Data SCR-1ASP045 Single phases 200-480VAC, current 45A, Multi-input, Phases angle
