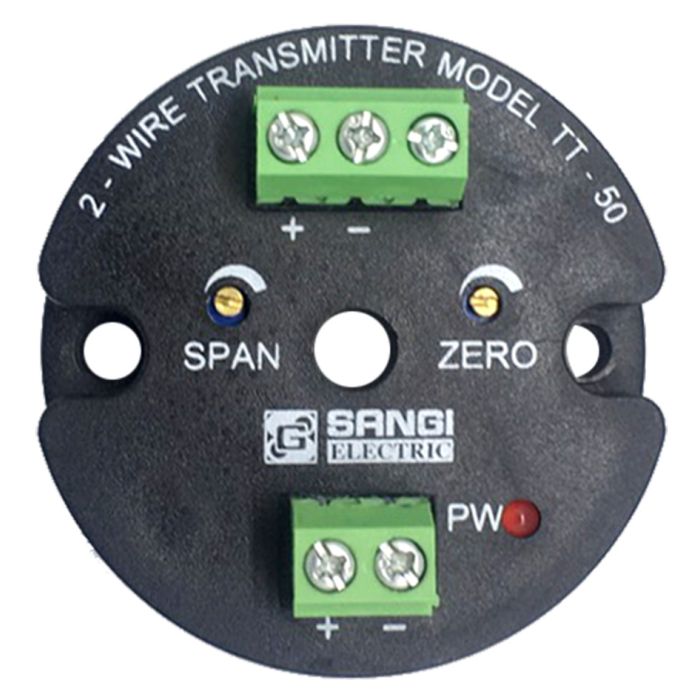

SANGI Thermocouple Transmitter Model TT-50 0-200 C TYPE K

Details of SANGI Thermocouple Transmitter Model TT-50 0-200 C TYPE K

SANGI Thermocouple Transmitter model TT-50 0-200 C TYPE K is a signal converter with two types of inputs, supporting temperature measurement from 0 to 200 degrees Celsius.

• RT-50 accepts RTD (PT-100) input
• TT-50 accepts thermocouple (TC) Type K, J inputs

This unit can be installed inside the sensor housing due to its standard DIN A size, providing high accuracy even when long-distance wiring is required between the measurement point and controller.

SANGI Thermocouple Transmitter model TT-50 0-200 C TYPE K offers cost savings compared to using compensation lead wire for long-distance sensor-to-controller wiring. It is suitable for applications where sensors and control cabinets are far apart, as well as when used with PLCs, data loggers or multi-point input control devices.

Technical Specifications of SANGI Thermocouple Transmitter Model TT-50 0-200 C TYPE K

• Input RTD (model RT-50), thermocouple (model TT-50)
• Output 4~20 mA (two-wire connection)
• Fault indication shows 28/3.8 mA when sensor is open circuit or out of input range
• Load resistance ≤(Vs-7.5)/0.02A]Ω
• Load stability ±0.01%FS/100Ω
• Linearity error <+0.2%FS
• Voltage change impact < 0.005%FS/VDC
• Temperature coefficient ± 0.01%FS / °C
• Calibration temperature 23°C±5°C
• Operating environment Temperature : 0~70°C / Humidity : 10-90%RH
• Maximum distance 1000 m (wire size 1x1.5 mm)
• Power supply 7.5~36V DC
