RN7012 efector 400 Encoder RMK0013-C24/E PL

Details of RN7012 \ efector 400 \ Encoder (Rotation Sensor) \RMK0013-C24/E \ PL

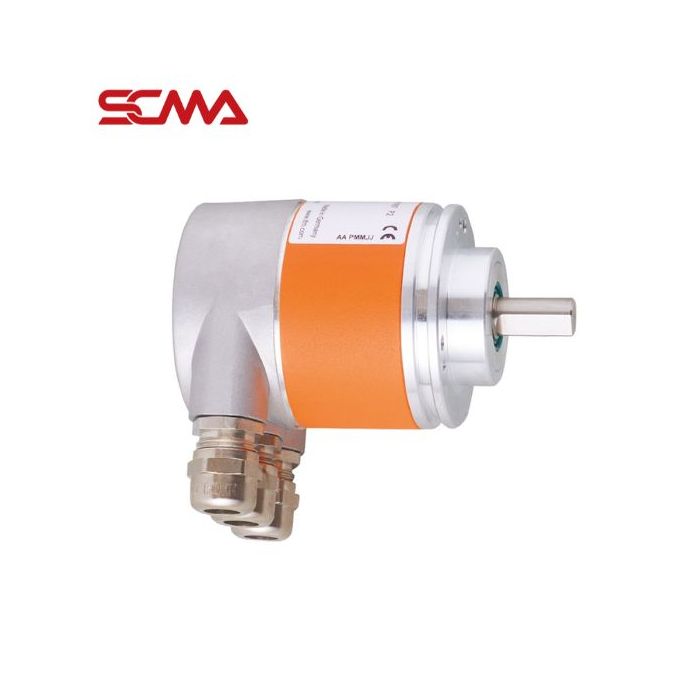

RN7012 \ efector 400 \ Encoder (Rotation Sensor) \RMK0013-C24/E \ PL is an encoder from ifm that can monitor and record rotations during industrial manufacturing processes. The unit is robust and durable for use in various harsh industrial environments, with vibration resistance to ensure efficient operation.

Technical Data RN7012 \ efector 400 \ Encoder (Rotation Sensor) \RMK0013-C24/E \ PL

• Resolution 8192 steps; 13 bit
• Communication interface CAN
• Shaft design solid shaft
• Shaft diameter[mm] 10
• Function principle absolute
• Revolution type singleturn
• Operating voltage[V] 10...30 DC
• Current consumption[mA] 100; ((10 V DC); 60 (24 V DC))
• Reverse polarity protection yes
• Protocol CANopen; DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0
• Weight[g] 555
• Dimensions[mm] Ø 58 / L = 99
• Materials aluminium
• Max. revolution, mechanical[U/min] 12000
• Shaft design solid shaft
• Shaft diameter[mm] 10
• Shaft material steel (1.4104)
• Max. shaft load axial (at the shaft end)[N] 40
• Max. shaft load radial (at the shaft end)[N] 110
• Fixing flange clamping flange
