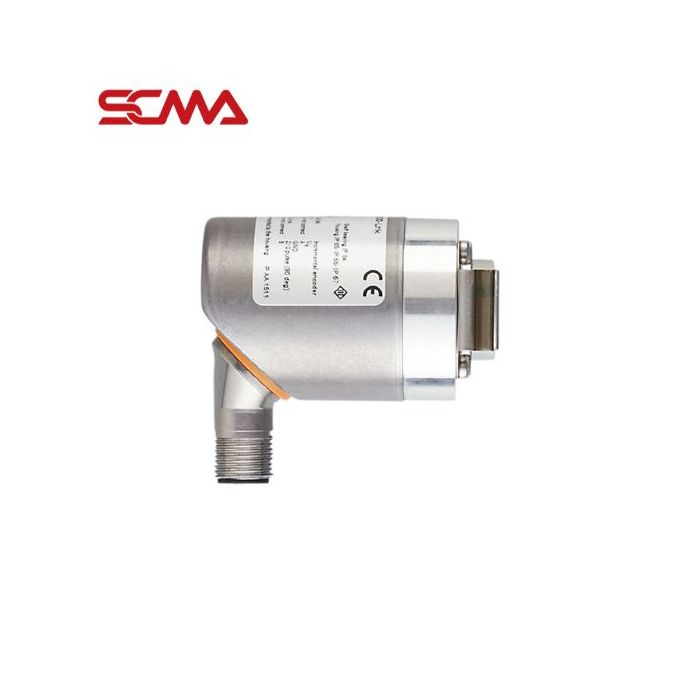

RA3101 \ efector 400 \ Encoder \ INCREMENTAL ENCODER BASIC LINE \ PL
Special Price THB 9,450.00 Regular Price THB 12,600.00
Out of stock
SKU
029205
Out of stock
Delivery date: 4 ก.ย. 2569
ifm electronic, efector, position sensors, magnetic sensors, magnetic object detection sensor, object detection, SCMA, Pepperl+Fuchs, Keyence
*Price does not include VAT
Details of RA3101 \ efector 400 \ Encoder (Rotation Sensor) \INCREMENTAL ENCODER BASIC LINE \ PL
RA3101 \ efector 400 \ Encoder (Rotation Sensor) \INCREMENTAL ENCODER BASIC LINE \ PL An encoder from ifm that can adjust the Pulse value from 1~10000 Pulse in a single unit, reducing inventory burden. Additionally, the sensor is easy to configure with IO-Link system.
- Can set the number of Pulses per rotation across all usage ranges from 1...10000 Pulse
- Available in sizes 6 mm, 10 mm and shaft mounting sizes 6 mm, 12 mm.
- Available with built-in cable or M12 connector type
- Operating voltage 4.75...30 VDC (HTL, TTL)
- Resolution of 1~10,000 Pulse
- Dimensions 32.3x58.5 mm.
- Protection standard IP65, IP67 (Housing) / Protection standard IP64 (Shaft)
Technical Data RA3101 \ efector 400 \ Encoder (Rotation Sensor) \INCREMENTAL ENCODER BASIC LINE \ PL
- Resolution 1...10000; (parameterisable; Factory setting: 1024)
- Communication interface IO-Link
- Shaft design hollow shaft open to one side
- Shaft diameter[mm] 6
- Function principle incremental
- Detection system magnetic
- Weight[g] 268.5
- Dimensions[mm] Ø 36.5 / L = 58.5
- Materials flange: aluminium; housing: stainless steel (444/1.4521)
| จำนวนวันจัดส่ง | 3 วัน |
|---|---|
| Special Price | THB 9,450.00 |
