O5H500 \ efector 200 \ Photo sensor \ O5H-FPKG/US100 \ DE

Details of O5H500 \ efector 200 \ Photo sensor (Photo switch) \O5H-FPKG/US100 \ DE

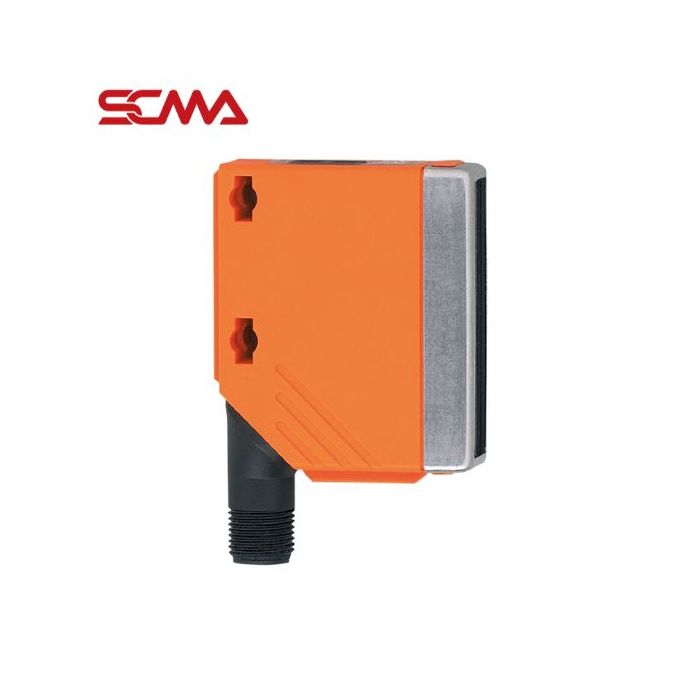

O5H500 \ efector 200 \ Photo sensor (Photo switch) \O5H-FPKG/US100 \ DE is a photo sensor from the IFM brand with a detection range of 50...1,800 mm in reflective mode (IFM photo sensor/photo cell) for production process monitoring in industrial applications.

Features of O5H500 \ efector 200 \ Photo sensor (Photo switch) \O5H-FPKG/US100 \ DE

• Electrical design DC PNP
• Operating voltage [V] 10...36 DC
• Current consumption [mA] 25
• Type of light Red light 624 nm
• Protection class II
• Reverse polarity protection yes
• Range [mm] 50...1800 (Range referred to white paper 200 x 200 mm, 90 % remission)
• Object white (90 % remission) 50...1800
• Object grey (18 % remission) 50...900
• Object black (6 % remission) 50...600
• Light spot diameter [mm] 50 ( Range 1000 mm )
• Ambient temperature [°C] -25...60
• Protection IP 67
• EMC EN 60947-5-2
• MTTF [Years] 360
• Housing materials housing: PA; bezel: high-grade stainless steel; operator interface: TPU
• Lens material PMMA
• Weight [kg] 0.067
