O3D201 \ efector 250 \ 3D camera \ PMD 3D CAMERA \ DE

Details of O3D201 \ efector 250 \ 3D camera (Mobile object inspection 3D Camera) \PMD 3D CAMERA \ DE

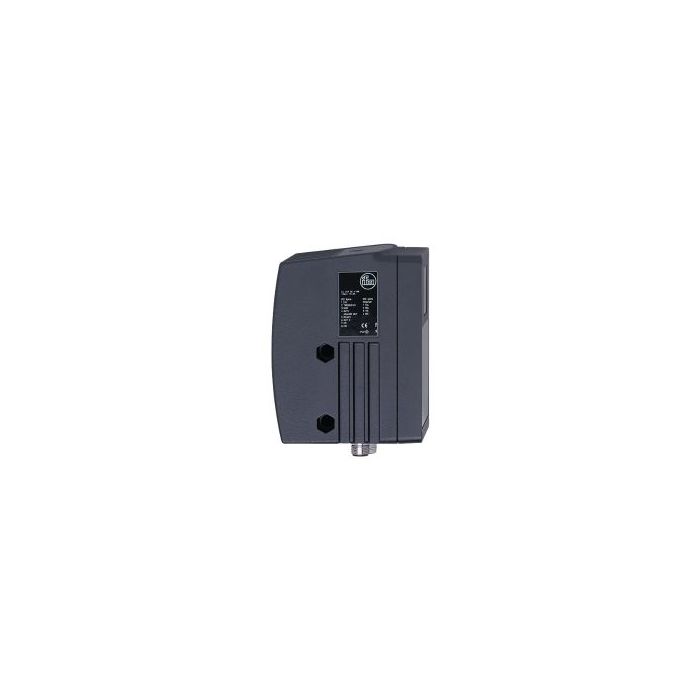

O3D201 \ efector 250 \ 3D camera (Mobile object inspection 3D Camera) \PMD 3D CAMERA \ DE A 3D sensor from ifm that can measure both level and volume, inspecting completeness of packaging distance in one unit. Applications include checking whether bottles are fully packed inside boxes or counting the number of boxes containing products on a pallet.Products on a pallet

Features of O3D201 \ efector 250 \ 3D camera (Mobile object inspection 3D Camera) \PMD 3D CAMERA \ DE

• Image resolution 3D[px] 64 x 48
• Angle of aperture 3D[°] 40 x 30
• Max. reading rate [Hz] 20
• Operating voltage tolerance[%] 10
• Operating voltage[V] 24 DC
• Current consumption[mA] peak current pulsed: 3250; typical value: 960
• Power consumption[W] 16
• Protection class III
• Image sensor PMD 3D ToF-Chip
• Internal lighting yes; (infrared: 850 nm invisible radiation LED class 1)
• Number of inputs and outputs Number of digital inputs: 2; Number of digital outputs: 2
• Image resolution 3D[px] 64 x 48
• Angle of aperture 3D[°] 40 x 30
• Max. reading rate [Hz] 20
• Weight[g] 1176
• Dimensions[mm] 123.5 x 75 x 95
• Materials housing: diecast aluminium; front pane: PMMA; display window: PC
