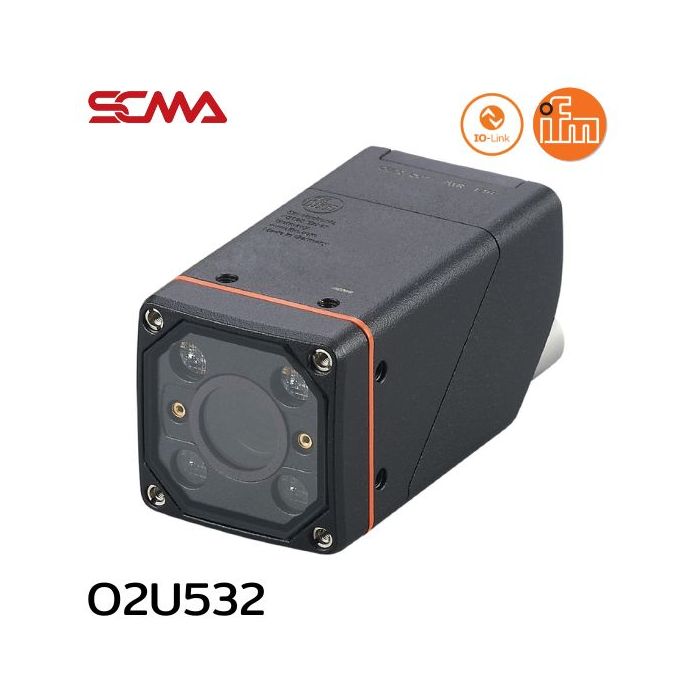

O2U532 \ effector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/W/5A

Details of O2U532 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/W/5A

O2U532 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/W/5A from the brand ifm features an object detection sensor using barcode and 2D code reading methods. It supports communication protocols such as ProfiNet, EtherNet/IP, and a two-dimensional image sensor that enables surface analysis, shape recognition, as well as code and character reading. The interface is versatile and integrates smoothly with controllers. Easy to use with application creation software and removable memory.

Technical Data O2U532 \ efector 250 \ Object recognition \ O2URRDKG/E1/E2/E4/IO/EF/GM/W/5A

• Type of light : red light
• Image resolution[px] : 1280 x 960
• Max. reading rate [Hz] : 40
• Operating voltage[V] : 18...30 DC
• Wave length[nm] : 617
• Parameter setting : options Multi-function button; via PC with ifm Vision Assistant
• Image sensor : CMOS image sensor black/white
• Number of digital outputs : 2
• Electrical design : PNP/NPN
• Ambient temperature[°C] : -10...50
• Protection : IP 65
• Dimensions[mm] : 45 x 45 x 96
• Electrical connection - Ethernet : Connector M12
• Electrical connection - supply : Connector M12
